Single-sided surface lapping machine/polishing machine

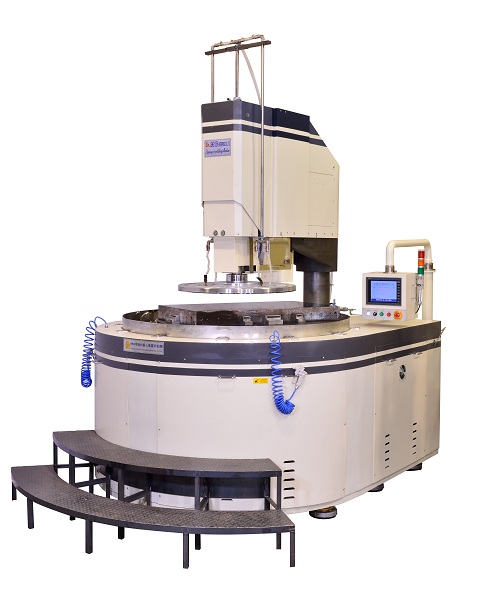

Single-sided surface lapping machine/polishing machine
JY-M55


According to different material Metal/Nonmetal workpiece, configure the appropriate solutions, complete the polishing of all kinds of flat material, improve the flatness and surface roughness, and then to a mirror effect.



Suitable for large flat parts.



Applicable products:

ceramic mechanical seal tungsten carbide razor blades mirror die pad printer FERRITE CORE plate ultrasonic welding head oscillation sewing machine parts replacement parts empty hydraulic valve stainless steel Sapphire Crystal glass substrate for semiconductor chip (gallium arsenide, indium phosphide, silicon wafer) Copper Al alloy Al-mg alloy silicon carbide substrates


Specification


Processing capacity: 20”~55”

Upper Plate Waving Range     50°

Upper Plate Diameter     Ø610mm

Upper Plate Expension Amount      0-150mm

Upper Plate Rising Height       0-320mm

Upper Plate Bending       30°

Lower Plate Motor  15HP

Upper Plate Motor  3HP

Lower Plate Drive Motor 10HP

Waving Motor 5HP
