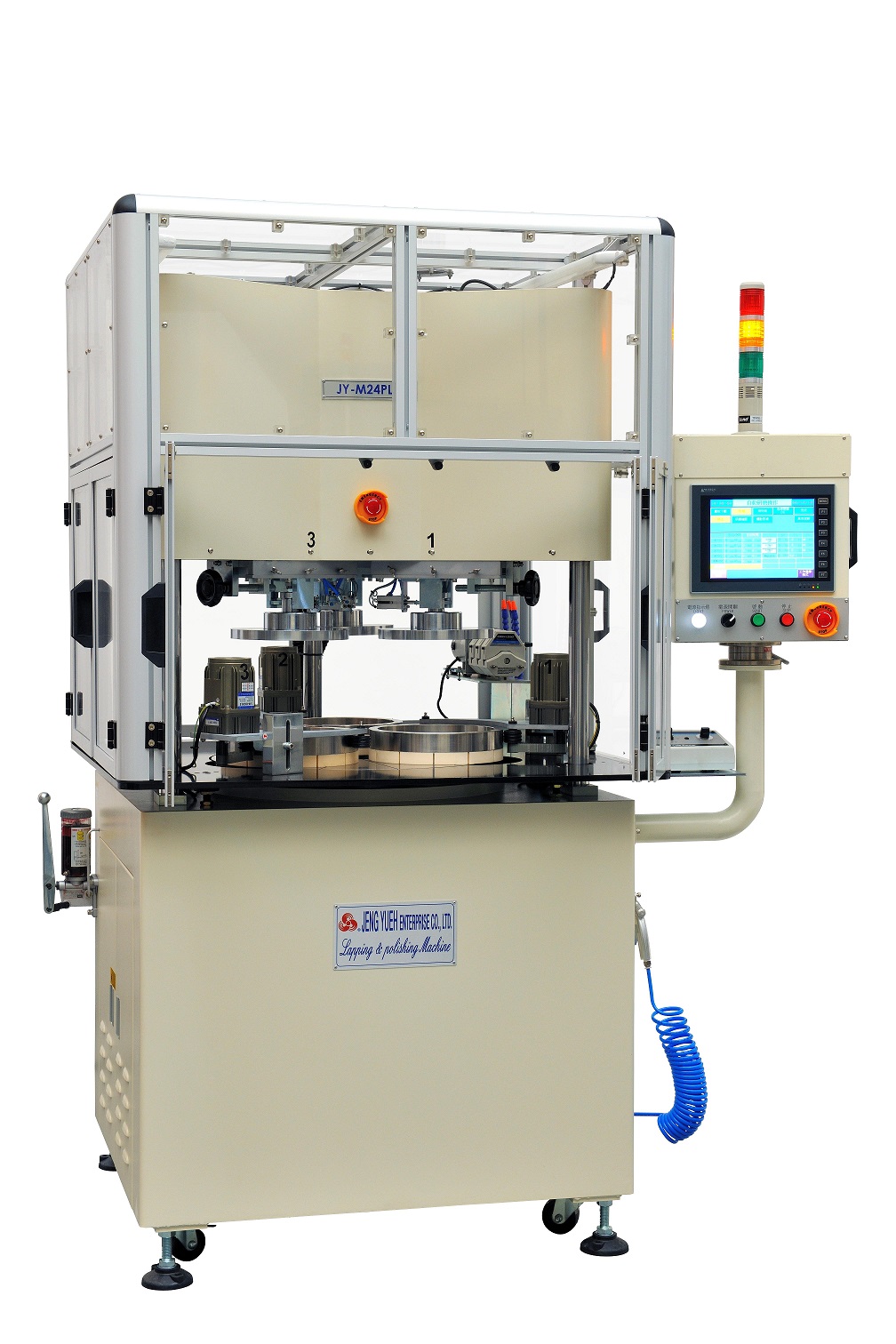

Single-sided surface lapping machine/polishing machine
Single-sided surface lapping machine/polishing machine
JY-M24PLC





According to different material Metal/Nonmetal workpiece, configure the appropriate solutions, complete the polishing of all kinds of flat material, improve the flatness and surface roughness, and then to a mirror effect.



Programmable control and human-machine operation-easy recording data and coordinate with other automation components.



Applicable products:

ceramic mechanical seal tungsten carbide razor blades mirror die pad printer FERRITE CORE plate ultrasonic welding head oscillation sewing machine parts replacement parts empty hydraulic valve stainless steel Sapphire Crystal glass substrate for semiconductor chip (gallium arsenide, indium phosphide, silicon wafer) Copper Al alloy Al-mg alloy silicon carbide substrates



Optional: water cooling system of plate, power arm, power head, vacuum head ... ... and so on





Specification





Plate diameter Ø610mm

Processing capacity: less than ID248mm

Conditioning ring quantity      3PCS

Rotational speed of plate       0-70rpm

Main motor 4KW

Pressure regulator setting   0~200kgs
