Special Purpose Machine

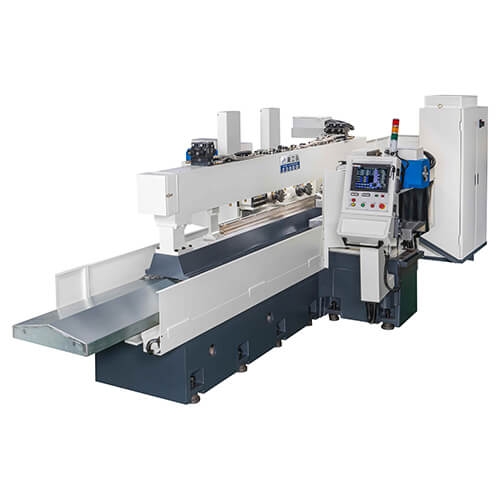

HM-400NC-2200D
HM-400NC-2200D
OPTIONAL FEATURE

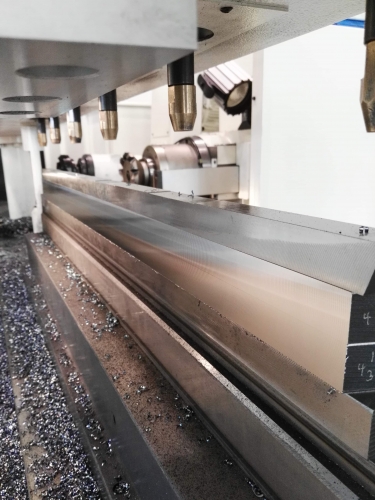

STRONG TRACK STRIP MILLING MACHINE
Unique machine design for high rigidity, efficiency, precision and reliable performance

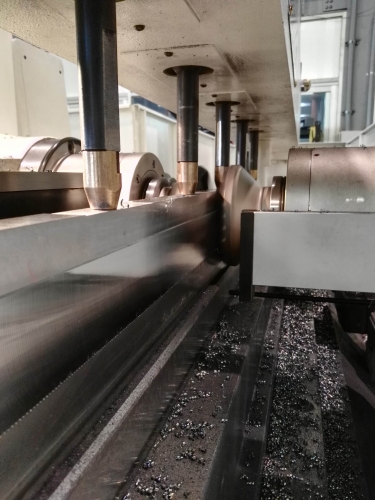

Heavy duty milling spindle

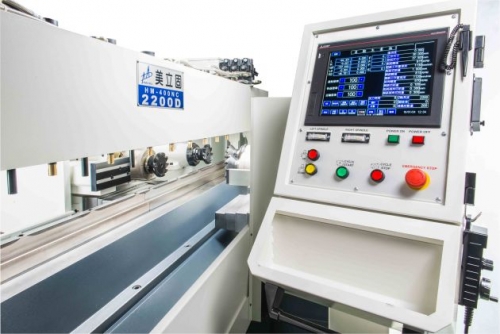

HMI user friendly touch screen, with dialogic data input, self-alarm diagnosis and alarm message display
Specification
| Model No. | HM-400NC-2200D | |
| Control System | MITSUBISHI | |
| Cutting capacity | Max. thickness of workpiece | 100 mm |
| Max. length of workpiece | 2200 mm | |
| Cutter diameter | ф125 mm | |
| Travel & Table | Travel of table X-axis | 2700 mm |
| Travel of spindle | 180 mm | |
| Feed Speed | Rapid feed speed X-axis | 8 m/min |
| Rapid feed speed ZL/ZR-axes | 8 m/min | |
| Manual feed speed | 1 ~ 1500 mm/min | |
| Spindle | spindle | NT-50 equivalent |
| Dimensions of spindle nose | ф 40 mm | |
| Spindle speed | 200 ~ 1000 RPM | |
| Motor | Spindle motor output | 15 kw x 2 |
| Feed motor X,ZL,ZR,WL,WR axes | 3 | |
| Others | Voltage | 220 V (Transformer) |
| Machine weight | 14.5 tons | |
| Machine dimension W x L x H (mm) | 3800 x 8500 x 2400 | |
