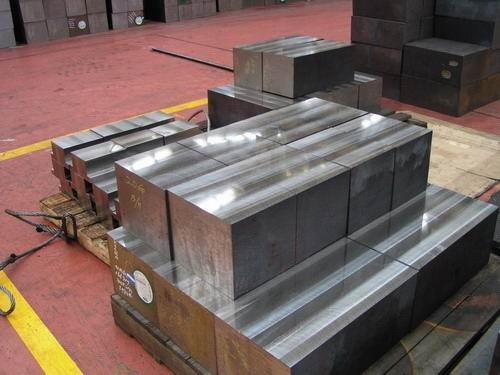

STANDARD FEATURES
Machine base with rigid, one-piece iron construction.

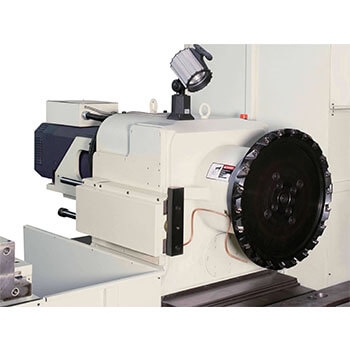

Heavy duty cutting spindle (Equivalent NT50) X and Y axes.
Z-axis precision linear guide for fast and rigid cutting.
All guides are TURCITE-B coated and precision scraped.
Half of the Z-axis ball screw is soaked into the lubrication oil.

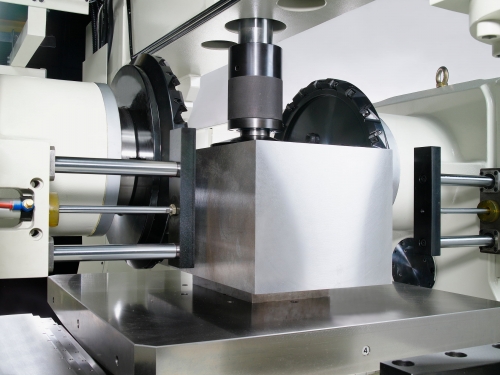

Powerful vertical clamp hydraulic cylinder.
HM-1500DS-500 with one main cylinder, the other models with one main cylinder and two auxiliary hydraulic cylinders, bigger models can apply one main cylinder and four auxiliary hydraulic cylinders for optional selection.
4 axes control, Z (Longitude), X、Y (R and L cutting spindle), A (precision index table).

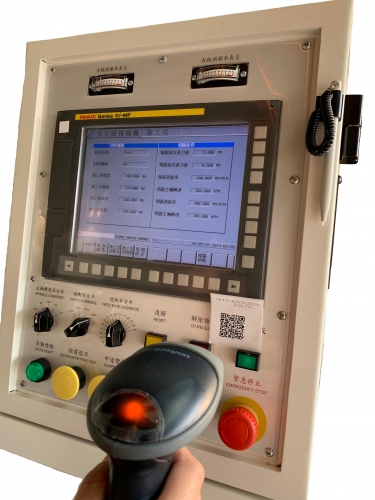

HMI user friendly touch screen, with dialogic data input, self-alarm diagnosis and alarm message display.
Electric cabinet with air cooling system.
Auto index table with servo control A-axis.
90˚ align stopper for easy setup of the workpiece.
Auto detecting device for measuring the workpiece before machine.
Complete set of hydraulic system.
Pneumatic system for air blow and detecting device.
2 sets of screw-type chip conveyors.
Halogen work light.
3 colors working condition light.
Tool box with tools.
OPTIONAL FEATURE
FANUC Controller
14” (Φ350mm) or 17” (Φ425mm) R&L Cutters
CE specification
Spindle temperature compensation system
Quick Response Code
Automated measurement after machining (QC Measurement)
| Cutting capacity | No. of control spindle | 4 |
| Cutting size Min. /Max. | 250 / 700 mm | |
| Max. cutting thickness (Cutter) | 350 mm | |
| Spindle box & spindle | Distance between spindle nose | 230 ~ 850 mm |
| Spindle motor | 30 HP (22 kw) | |
| Spindle taper | NT – 60 | |
| Spindle speed variable speed | 50 ~ 300 rpm | |
| Z-axis(Longitudinal) X-axis(Right spindle) Y-axis(Left spindle) A-axis(Rotator) |
Max. longitudinal travel (Z-axis) | 1500 mm |
| Max. spindle travel (X,Y-axes) | 385 mm | |
| Servo motor (Z, A-axes) | 2.9 kw | |
| Servo motor (X, Y-axes) | 2 kw | |
| Dia. of ball screw (Z-axis) | Φ50 P 10 | |
| Dia. of ball screw (X, Y-axis) | Φ40 P10 | |
| Rapid feed (Z-axis) | 6 m/min | |
| Rapid feed (X, Y-axis) | 6 m/min | |
| Work table | Worktable area (mm) | 700 x 2000 |
| Index table | Dimensions (mm) | 600 x 600 |
| Max. load | 2500 kg | |
| Oil tank capacity | Hydraulic unit | 100L |
| Lubrication oil tank | 2L x 3 | |
| Others | Machine dimension W x L x H (mm) | 3800x 6000 x 2400 |
| N.W. | 14 tons |
