ATC Series
Automatically Change Copper Drilling EDM

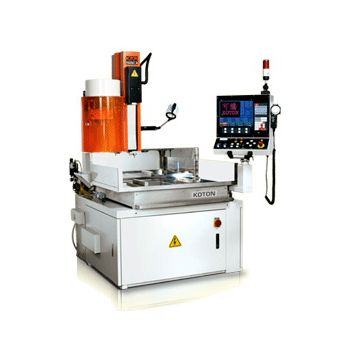

KTC-630ATC

Feature
●C type structure.
●Mirror image function.
●Coordinates can rotate at any angle.
●Automatic copper tube deviation correction.
●Automatic 16 & 30 copper tube changers available.
●Direct and easy learning dialogue operation interface.
●Data could be input by USB, or transfer through network.
●Automatic edge, internal diameter finding, and centering.
●The machining coordinate can be input directly when NC program is not available.
●Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
●Automatic illustrates the path of current and next drilling position with color.
●Precision servo motors on X,Y,Z axes provide excellent stability during drilling.
●The flushing medium used by this machine is distilled water - environment friendly.
●Provide 1μ optical scale, linear slideway and ballscrew ensure very accurate movements.
●NC program G-code and DXF files could be directly read; ●Automatically finds the start cutting point and begins a fine hole drilling process.
●Z axis auto reset and depth calculation. (Z axis automatically checks depths of holes, and then returns in order to complete any that are too shallow.)


Specification

Specifications

Model   KTH-630ATC

  • Work table dimension (mm)660 x 490
  • Max. Workpiece dimension (mm)1185 x 740
  • Table travel X/Y (mm)600 x 300
  • Z axis travel(mm)350
  • Ram servo travel (mm)350
  • Max. Length of electrode (mm)400
  • Min. Electrode diameter (mm)Ø0.2 ~ Ø3.0
  • Max. Workpiece weight (kgs)500
  • DielectricWater
  • Capacity of dielectric (litres)100
  • Machine weight (nw/gw) (kg)2100 / 2300
  • Packing dimension (mm)2300 x 1800 x 2240
  • Machine structureTraveling Head
  • Max. Current (A)25
  • Peak current setting (ip) (steps)6
  • Pulse on-time setting (steps)9
  • Pulse off-time setting (steps)9
  • High volts (steps)3
  • Power input (V)220/ 380/ 415
  • Max. Rating power (KVA)4

Accessories

  • 01.Electrode pipe guide Ø1.0mm
  • 02.Electrode tube Ø1.0mm × 10
  • 03.Halogen work lamp
  • 04.Tool box × 1
  • 05.Filter × 2
  • 06.Parallel block 1set
  • 07.X, Y, Z axis precision ball screw
  • 08.Auto pressure release pump × 1
  • 09.X, Y, Z axis precision servo motor
  • 10.1μ 2 axis optical scale and LCD
  • 11.X, Y, Z axis hand wheel
  • 12.USB
  • 13.X, Y, Z axis linear guideway
  • 14.Electrode auto change system
  • 15.Collet
