Products

Internal Grinding Machine
JHI-150CNC

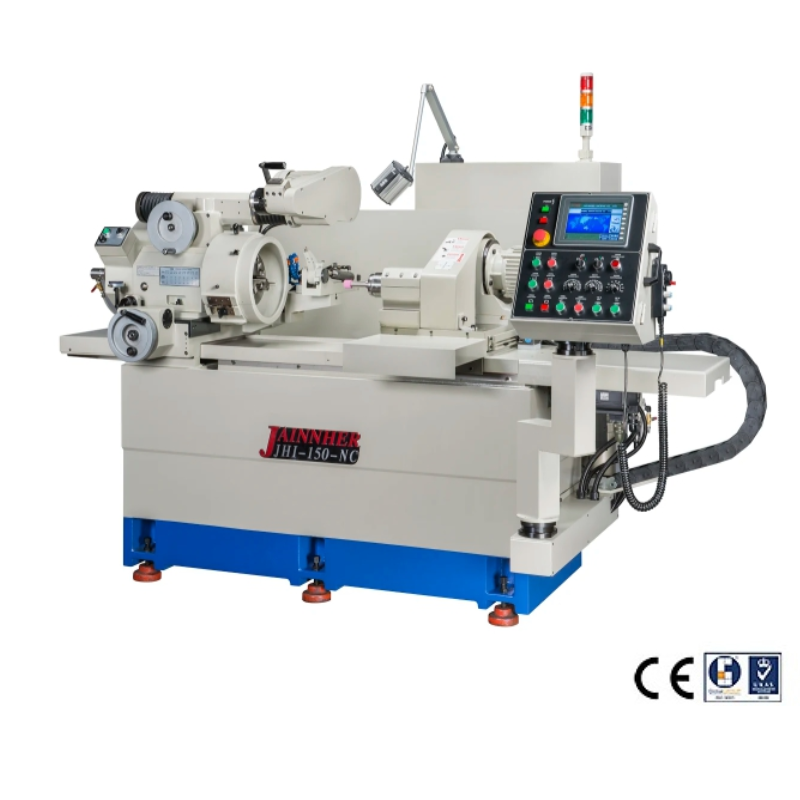

JHI-150NC

● End Face Grinding Device (Optional)
● Swiveling spindle head
● Motor Fixing Bar
● Precise Feed Positioning
● Spindle Head Driven by Servo Motor
● Automatic Belt Tension Control
● Hydraulic Power / Lubrication Unit

Specification

  • Jainnher self-developed conversational operational interface for maximum operational convenience, and is easy to learn and understand.
  • Automatic operation and multiple settings. This allows for selecting coarse grinding, fine grinding, non-sparkle grinding and dressing.
  • High precision NC control provides automatic dressing with compensation function.
  • Ruggedly constructed throughout assures maximum rigidity and stability.
  • Table spindle, X-axis and Z-axis are driven by servomotors.
  • Intermittent lubrication on X-axis provides maximum smoothness of movement.

End Face Grinding Device (Optional)

  • When requested, the machine is available to equip with an End Face Grinding Device, allowing the machine to perform internal and end face grinding at one time.
  • This not only greatly increases machining efficiency but also achieves high perpendicularity accuracy.

Swiveling spindle head

The workhead can be swiveled +8° allowing for grinding tapered parts.

End Face Grinding Device

Motor Fixing Bar

Motor Fixing Bar

Just as the motor starts running, a vibration occurs.
The fixing bar is used for holding the motor in place. Amicrometric adjustment knob is provided for adjusting the belt tension.

Precise Feed Positioning

The grinding wheel feed is driven by a high performance servo motor, combined with precision ball screw transmission, providing high positioning accuracy.

Precise Feed Positioning

Spindle Head Driven by Servo Motor

Spindle Head Driven by Servo Motor

  • The spindle head is driven by a high performance servo motor, providing accurate variable speed change.
  • The servo motor drive features no speed loss and constant torque output no matter if the spindle is running at high or low speed. It guarantees outstanding grinding surface quality.
  • The servo motor drive allows spindle positioning control for convenient workpiece release.

Automatic Belt Tension Control

  • The belt tension is automatically controlled by the motor weight to assure proper belt tension at all times.
  • This ensures full power transmission from the motor.
    The specially designed belt tension eliminates too tight or too loose tensiion problems that may affect grinding quality.

Automatic Belt Tension Control

Hydraulic Power / Lubrication Unit

Hydraulic Power / Lubrication Unit

The hydraulic power unit consists of two gear pumps, providing hydraulic power to the chuck and wheel dressing device. It also delivers lubrication oil to base slideways.
The hydraulic power unit consists of high quality parts, featuring low noise running and long service life.
A fan cooling device is mounted on the hydraulic power unit, providing efficient heat dissipation.

Massive Machine Structure

Optimal Structural Design
Guarantees Lifetime Accuracy

To maintain the long term accuracy after years of operation, the machine structure of the JAINNHER Internal Grinding Machine is carefully designed and manufactured.

  • The machine base is manufactured from high quality cast iron (FC30), tempered and stress relieved for maximum stability of material.
  • Great span between slideways provides firm support for wheel head assembly.
  • Ruggedly constructed throunghout for outstanding rigidity and stabiliyt.
  • Scientific rib reinforcement on the base structure for increased machine rigidity and deformation-free performance.

Massive Machine Structure

State-of-the-Art CNC Control

State-of-the-Art CNC Control

The CNC internal grinding machine is equipped with a FANUC (Oi-Mate TC) control. It employs macro (macro programs) operation interface combined with the use of an 8.4" colorful LCD screen, greatly upgrading production and providing outstanding grinding accuracy.

AUTOMATIC SENSING DEVICE

It can conduct fine surface grinding of interior radii and end faces, and the device monitors the wheel during operation, protecting it from overloading.

Automatic Grinding Cycle

Automatic Grinding Cycle

Automatic Grinding Cycle

GRINDING TEST REPORT JHI-150-CNC
Grinding Wheel Specifications WA 80K5V5A
Workpiece Size Ø27 ± 0.003 mm
Workpiece Material SNCM220
Total Grinding Amount 0.34 mm
Rough Grinding Feed Rate 40 mm/s
Ratio 100%
Rough Grinding Amount 0.32
Finish Grinding Feed Rate 25 mm/s
Ratio 100%
Finish Grinding Amount 0.02 mm
Feed for Rough Grinding 0.005 mm
Feed for Finish Grinding 0.002 mm
Polishing Time 30 sec.
Wheel Dressing for Rough Grinding 0.01 mm
Wheel Dressing for Finish Grinding 0.01 mm
Roundness Accuracy 2 um
ITEM JHI-150NC JHI-150BCNC
Capacity Range of I.D. grinding Ø6-150mm Ø6-150mm
Max grinding depth 150 mm 150 mm
Max holding length 200 mm 200 mm
Swing over bed 500 mm 500 mm
Swing in chuck guard 280 mm 280 mm
Wheel feeding(X axis) Rapid feed speed 5 m/min 5 m/min
Max.stroke 100 mm 100 mm
Min.setting unit 0.001 mm 0.001 mm
Wheel feeding(Z axis) Rapid feed speed 8 m/min 8 m/min
Max.stroke 450 mm 450 mm
Min.setting unit 0.001 mm 0.001 mm
Work head Spindle speed 10-1000 rpm 10-1000 rpm
Spindle A2-5 A2-5
Swivel angle ±8° ±15°
Workhead table Swivel angle - -
Rotary table Rpm - 0-20 rpm
Min.unit - 0.001°
Swivel angle - -90°
Motor G/W pindle motor Standard 3HP 2P
optional 5HP 2P
Build-in type
7.5 KW/10HP
Spindle head motor Servo 1.5 KW Fanuc Servo 3.5 KW
Z-axis servo motor 1.5 KW 1.2 KW
X-axis servo motor 0.75 KW 0.75 KW
Coolant 1/4HP 2P 1/4HP 2P
Hydraulic lubrication 1/4HP 4P 1/4HP 4P
Hydraulic system 1HP 4P 1HP 4P
Rotary table - -
Packing Size of Case 2900x1900x2100 mm 2900x1900x2100 mm
Net weight 2500 Kgs 3100 Kgs
Gross weight 2700 Kgs 3300 Kgs



Grinding Test Report Model JHI-150-NC
Grinding Wheel Specifications WA 80K5V5A
Workpiece Size Ø27 ± 0.003 mm
Workpiece Material SNCM220
Totle Grinding Amount 0.34 mm
Rough Grinding Feed Rate 40 mm/s
Ratio 100%
Rough Grinding Amount 0.32
Finish Grinding Feed Rate 25 mm/s
Ratio 100%
Finish Grinding Amount 0.02 mm
Feed for Rough Grinding 0.005 mm
Feed for Finish Grinding 0.002 mm
Polishing Time 30 sec.
Wheel Dressing for Rough Grinding 0.01 mm
Wheel Dressing for Finish Grinding 0.01 mm
Roundness Accuracy 2 um
