Drilling Machine

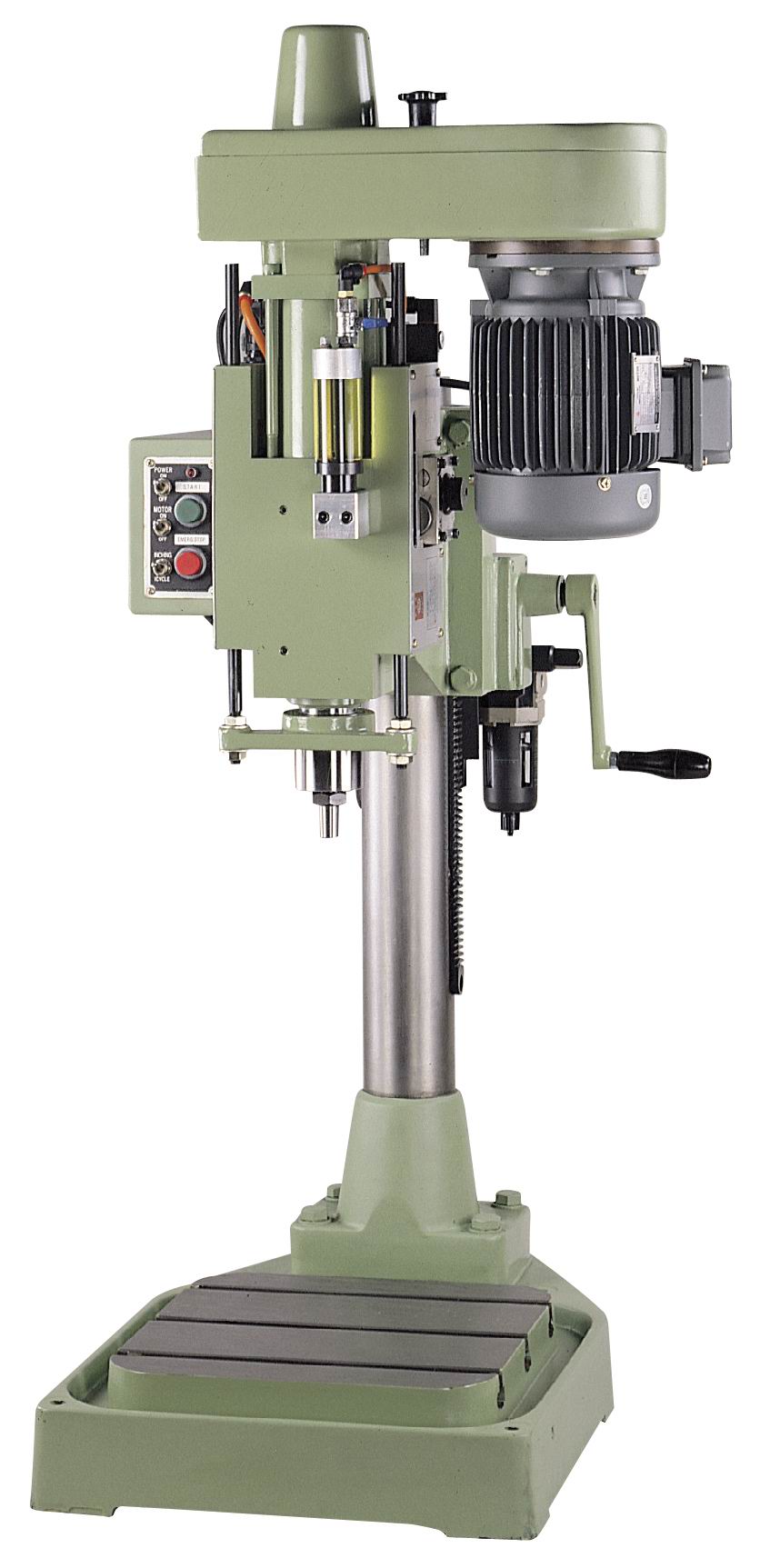

Auto Step Retract Drilling Machine with Air-Hydro Tool Feed

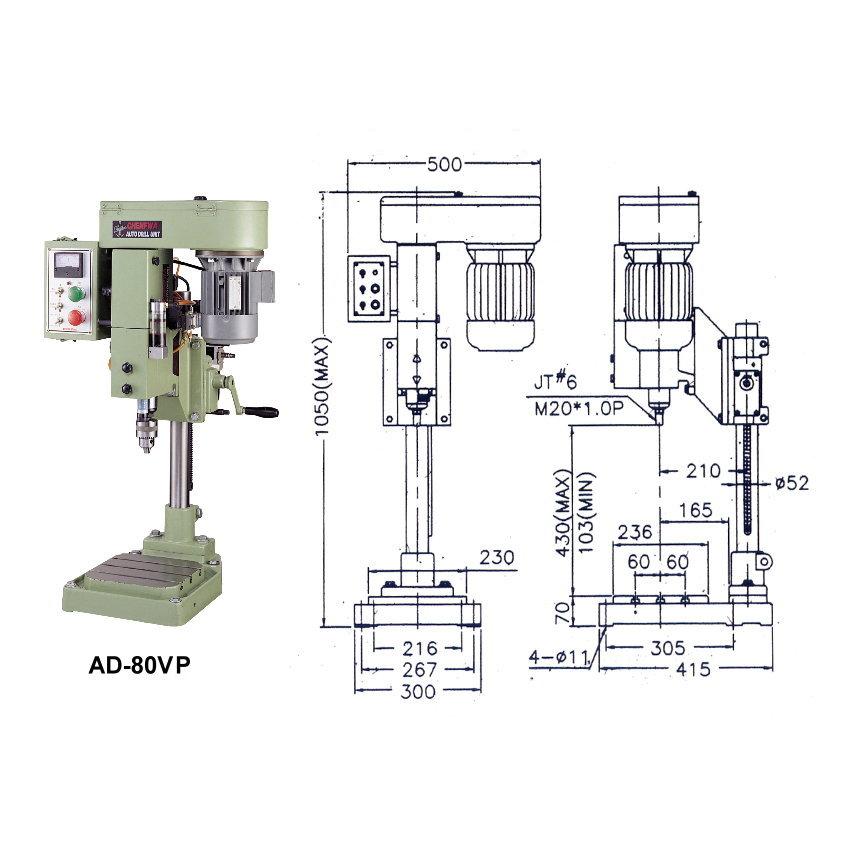

AD-80VSP


  • The AD-80VP(P) has step feeding cycle: Spindle will operate like feeding pattern of removing further.

  • Cycle: Rapid approach --> Tool feed --> Rapid return. The cycle can adjust the flow control valve to set the speed of tool feed.

  • Adjust feed & stroke simply, operate easily.

  • All machines are available for Multi-Spindle Head that will increase efficiency in 5-10 times.

  • It can be settled at any direction and position to reduce production cost and make quality unique.

  • Assemble with Auto Tapping machines for special working of drilling, boring and tapping at one time.

  • Air-Hydro -->Hydraulic equipment adjusted easily.

  • 4 spindle speeds are suitable for deep working of small holes.

  • High accuracy, less vibration & noise.

  • Small size & light weight, suitable for assembly of special purpose machine.


Specification

Item No. AD-80VSP,AD-80P
Drilling Capacity (m/m) Castiron Ø10; Steel Ø8
Spindle Stroke (m/m) 80
Cutting Stroke (m/m) 60
Thrust (kgs) 110
Taper of Spindle JT#6
4P 50Hz Spindle Speeds (r.p.m.) 480, 750, 1350, 2300
4P 60Hz Spindle Speeds (r.p.m.) 500, 900, 1600, 2800
Motor Rating 3Ø * 1/2HP * 4P
Working Air Pressure 5 kgs/cm²
Rapid Approch Speed (m/min) 5
Weight (Approx) (kgs) 95
