Drilling Machine
Auto Drilling Unit with Air-Hydro Tool Feed

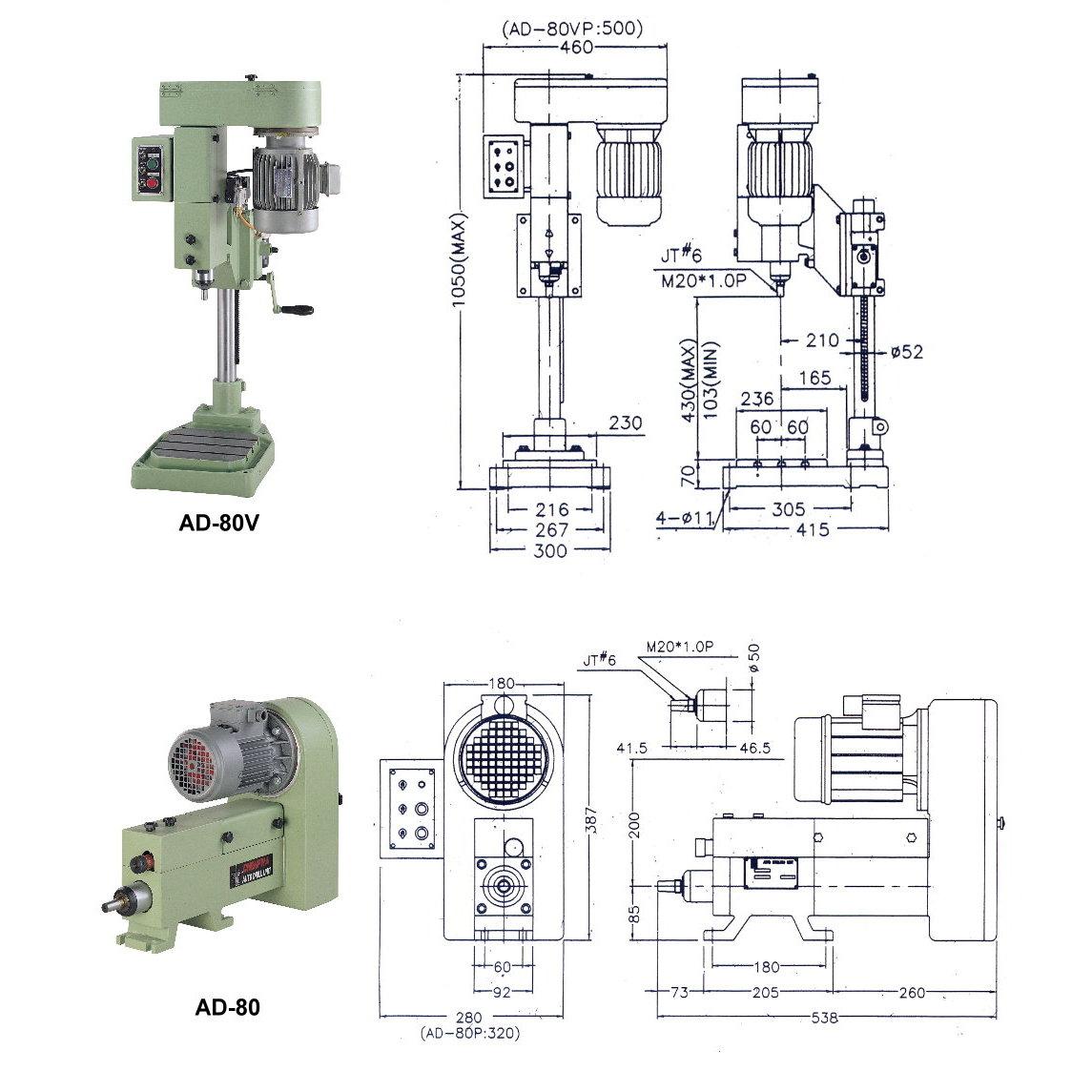

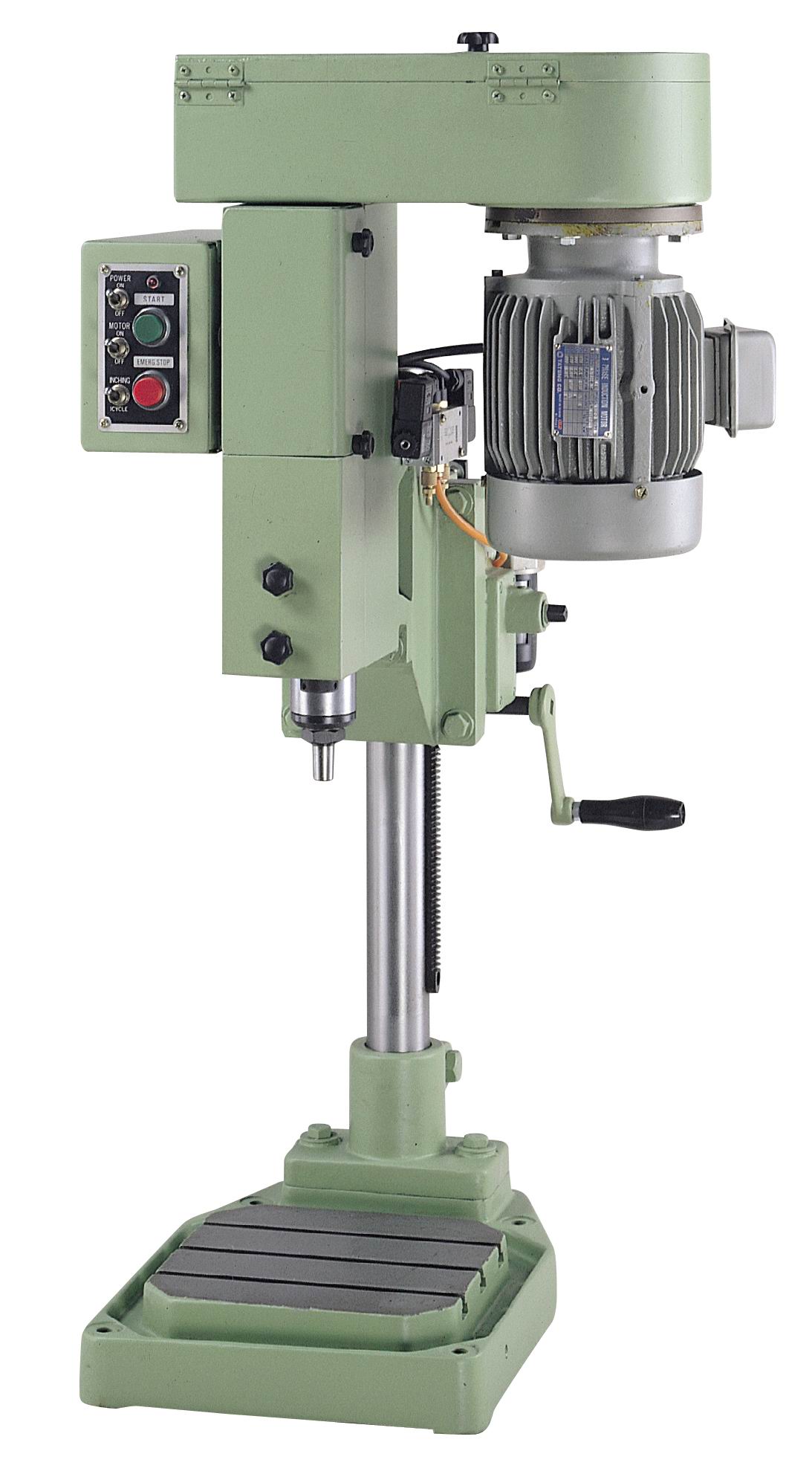

AD-80VS,AD-80


  • Automatic, labor saving equipment: several machines can be operated by one person.

  • Cycle: Rapid approach --> Tool feed --> Rapid return. The cycle can adjust the flow control valve to set the speed of tool feed.

  • Adjust feed & stroke simply, operate easily.

  • All machines are available for Multi-Spindle Head that will increase efficiency in 5-10 times.

  • It can be settled at any direction and position to reduce production cost and make quality unique.

  • Assemble with Auto Tapping machines for special working of drilling, boring and tapping at one time.

  • Air-Hydro -->Hydraulic equipment adjusted easily.

  • 4 spindle speeds are suitable for deep working of small holes.

  • High accuracy, less vibration & noise.

  • Small size & light weight, suitable for assembly of special purpose machine.


Specification

Item No. AD-80VS AD-80
Drilling Capacity (m/m) Castiron Ø10; Steel Ø8 Castiron Ø10; Steel Ø8
Spindle Stroke (m/m) 80 80
Cutting Stroke (m/m) 60 60
Thrust (kgs) 110 110
Taper of Spindle JT#6 JT#6
Working Surface of Baxe 230 x 236 -
Area of Base 300 x 415 -
4P 50Hz Spindle Speeds (r.p.m.) 480, 750, 1350, 2300 480, 750, 1350, 2300
4P 60Hz Spindle Speeds (r.p.m.) 500, 900, 1600, 2800 500, 900, 1600, 2800
Motor Rating 3Ø * 1/2HP * 4P 3Ø * 1/2HP * 4P
Working Air Pressure 5 kgs/cm² 5 kgs/cm²
Rapid Approch Speed (m/min) 5 5
Weight (Approx) (kgs) 90 45
