Drill and end mill grinding machine series
End Mill Re-Sharpener (Easy Fast Precision)
EMG

End Mill Re-Sharpener (Easy Fast Precision)

EMG-1325 (Ø12mm-Ø25mm)



For 2.3.4flutes END MILL

6pcs ER collets
2pcs collet holders		 6pcs ER collets
2pcs collet holders

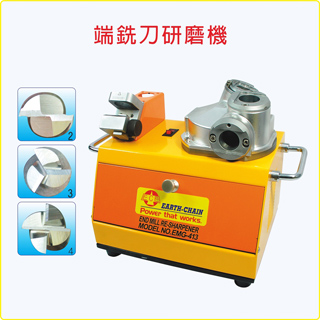

EMG-413 (Ø4mm-Ø13mm)

10pcs ER collets
2pcs collet holders

SDC wheel (for Ø4mm-Ø5mm) SDC wheel (for Ø6mm-Ø13mm)
2pcs SDC Wheels included (For carbide End Mill only.)

Specification

Model NO. EMG-413 EMG-1325
Capacity Ø4mm - Ø13mm Ø12mm - Ø25mm
Drill Angle
Grinding Wheel SDC Wheel #300 for Ø4mm--Ø5m　 CBN #150x1PC
SDC Wheel #300/#120 for Ø6mm--Ø13mm SDC #150x1PC
Motor 3/4 HP 450W 1000W
R.P.M. 6000 R.P.M. 4300 R.P.M.
Power Supply AC110V or AC220V Single Phase
Weight 17 KGS 31 KGS

Model NO. Description
EMG-413-1D SDC Wheel #300 (for Ø4mm--Ø5mm)
EMG-413-2D SDC Wheel #300/#120 (for Ø6mm--Ø13mm)
EMG-413-1C CBN Wheel #300 (for Ø4mm--Ø5mm)
EMG-413-2C CBN Wheel #300/#120 (for Ø6mm--Ø13mm)
EMG-1225-1D SDC Wheel #150 (for Ø12mm--Ø25mm)
EMG-1225-1C CBN Wheel #150 (for Ø12mm--Ø25mm)
Model NO. EMG-413 EMG-1325
ER collets Ø4mm - Ø13mm × 10pcs Ø12mm - Ø25mm × 6pcs
SDC Wheel #300 × 1pcs (Ø4mm--Ø5mm) CBN #150x1PC
SDC Wheel #300 #120 × 1pcs (Ø6mm--Ø13mm) SDC #150x1PC
Collet Holder 1pc (for 2 and 4 flutes End Mill) 1pc (for 2 and 4 flutes End Mill)
Collet Holder 1pc (for 3 flutes End Mill) 1pc (for 3 flutes End Mill)
Hexagon Wrench 4mm × 1pc 4mm × 1pc
