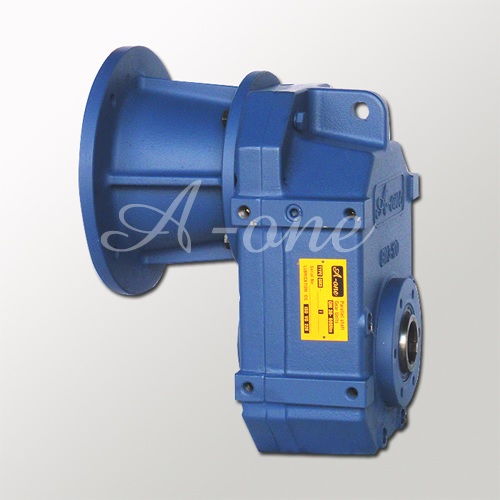

he gear boxes along with every quality parallel gear units are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash. All parallel gear units use high precision, hardened and ground helical gears for maximum transmission of power and high efficiency.
The A-one parallel gear units apply modular design. Ratios are designed and selected to correspond with the normal usage of customer .All of the gear units are available for foot or flange mounting and can be installed in any directions and positions provided.
With rich experience, A-one has reliable reputation in the industry for manufacturing quality parallel gear unit. If you are looking for high standard gears and related products, please do not hesitate and contact with us today for further information.
Specification:
Max. output torque: 550Nm
Ratio: 4-224
Adapter motor power: 0.18kW .2.2 kW
Output speed: 750rpm-4rpm
Output hollow shaft: 30mm ( with key way or spline )
Options：
Output flange
Output shaft
Specifications:
|
Paralle Gear unit Type |
I |
Output speed n2 |
Output |
Input torque of input unit T1(Nm) |
|||||||
|
(60Hz)rpm |
(50Hz)rpm |
||||||||||
|
Nm |
1 |
2.5 |
5 |
10 |
15 |
25 |
45 |
||||
|
GM 3-4 |
4.17 |
431.65 |
359.71 |
300 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM 3-5 |
5.11 |
352.25 |
293.54 |
330 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM 3-6 |
6.08 |
296.05 |
246.71 |
350 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM 3-7 |
7.70 |
233.77 |
194.81 |
350 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM 3-9 |
9.54 |
188.68 |
157.23 |
370 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM 3-11 |
10.64 |
169.17 |
140.98 |
500 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM 3-14 |
13.49 |
133.43 |
111.19 |
550 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM 3-18 |
17.61 |
102.21 |
85.18 |
550 |
○ |
○ |
○ |
○ |
○ |
○ |
- |
|
GM 3-22 |
22.32 |
80.65 |
67.20 |
550 |
○ |
○ |
○ |
○ |
○ |
- |
- |
|
GM 3-28 |
27.64 |
65.12 |
54.27 |
550 |
○ |
○ |
○ |
○ |
○ |
- |
- |
|
GM 3-36 |
39.49 |
45.58 |
37.98 |
550 |
○ |
○ |
○ |
○ |
- |
- |
- |
|
GM 3-45 |
44.77 |
40.21 |
33.50 |
550 |
○ |
○ |
○ |
○ |
- |
- |
- |
|
GM 3-56 |
55.14 |
32.64 |
27.20 |
550 |
○ |
○ |
○ |
- |
- |
- |
- |
|
GM 3-71 |
74.07 |
24.30 |
20.25 |
550 |
○ |
○ |
○ |
- |
- |
- |
- |
|
GM 3-90 |
91.22 |
19.73 |
16.44 |
550 |
○ |
○ |
○ |
- |
- |
- |
- |
|
GM3-112 |
114.07 |
15.78 |
13.15 |
550 |
○ |
○ |
- |
- |
- |
- |
- |
|
GM3-140 |
140.04 |
12.85 |
10.71 |
550 |
○ |
○ |
- |
- |
- |
- |
- |
|
GM3-180 |
175.12 |
10.28 |
8.57 |
550 |
○ |
○ |
- |
- |
- |
- |
- |
Certificate:
- CE Approved
- China CCC certificate(3C)
Order Information:
- Minimum Order: Negotiable
- FOB: Taichung port, Keelung port
