Grinding Coolant Filter System

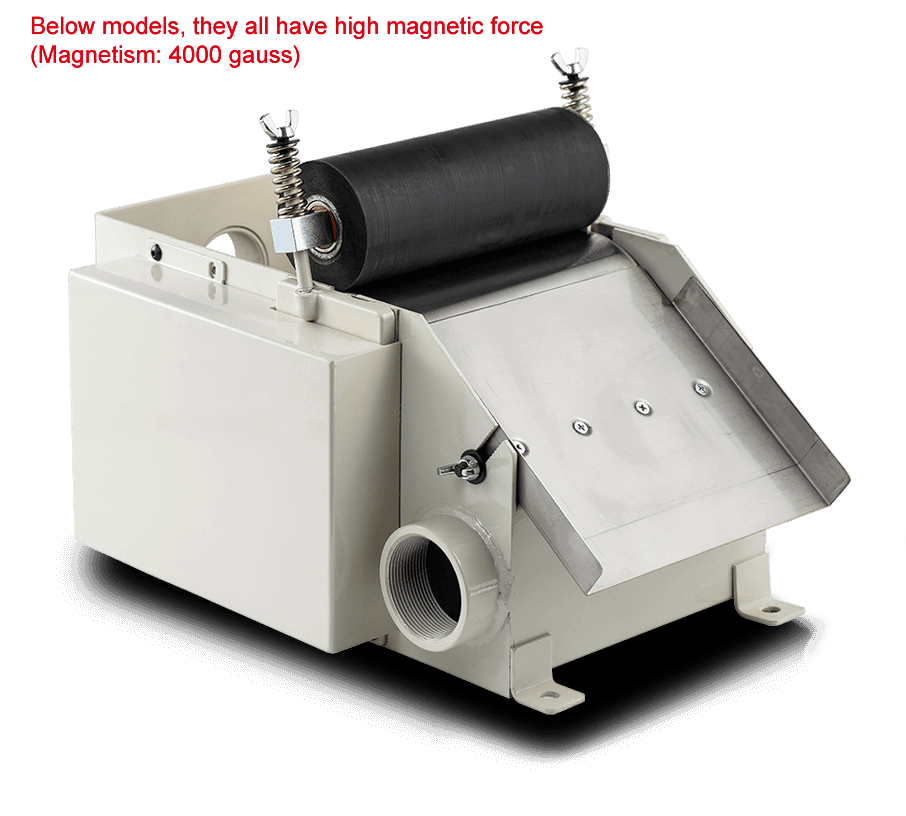

Magnetic Separator
MS-Series
Feature
Increase workpiece’s accuracy, and reduce number of coolant replacement.
High viscosity’s oil based coolant can use with oiltolerance rubber roller wheel.
Able to separate coolant from iron residues.
Specification
Standards Accessories:
and a crumb bucket
One 90-bend female connector
Iron pipe stand cloth II
Dimensions:
- A : Overall length
- B : Overall width
- C : Overall height
- D : Frame height
- E : Frame width
- F : Rubber roller length
- G : Inlet height(Center height)
- H : Outlet height(Center height)
Specifications
| Model | Processing capacity L/min |
A | B | C | D | E | Rubber roller wheel width F |
G | H | I | J | K | M | N | motor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS-20 | 20 | 455 | 215 | 300 | 200 | 140 | 122 | 145 | 60 | 396 | 110 | 11 | 1-1/2"PT | 1-1/2"PT | 25W |
| MS-40 | 40 | 455 | 245 | 300 | 200 | 166 | 146 | 145 | 60 | 396 | 136 | 11 | 2"PT | 2"PT | 25W |
| MS-60 | 60 | 455 | 290 | 300 | 200 | 211 | 196 | 145 | 60 | 396 | 181 | 11 | 2"PT | 2"PT | 25W |
| MS-80 | 80 | 455 | 330 | 300 | 200 | 248 | 230 | 145 | 60 | 396 | 218 | 11 | 2"PT | 2-1/2""PT | 25W |
| MS-120 | 120 | 580 | 370 | 330 | 230 | 278 | 260 | 170 | 55 | 486 | 248 | 11 | 3"PT | 3"PT | 40W |
| MS-160 | 160 | 580 | 455 | 330 | 230 | 363 | 345 | 170 | 55 | 486 | 333 | 11 | 3"PT | 3"PT | 40W |
| MS-240 | 240 | 750 | 515 | 315 | 220 | 425 | 405 | 135 | 60 | 656 | 383 | 11 | 3"PT | 3"PT | 60W |
| MS-360 | 360 | 750 | 745 | 350 | 250 | 640 | 620 | 165 | 75 | 656 | 610 | 11 | 4"PT | 4"PT | 100W |
| MS-500 | 500 | 750 | 1100 | 520 | 280 | 826 | 800 | 180 | 80 | 656 | 776 | 11 | 5"PT | 5"PT | 220W |
