Specification

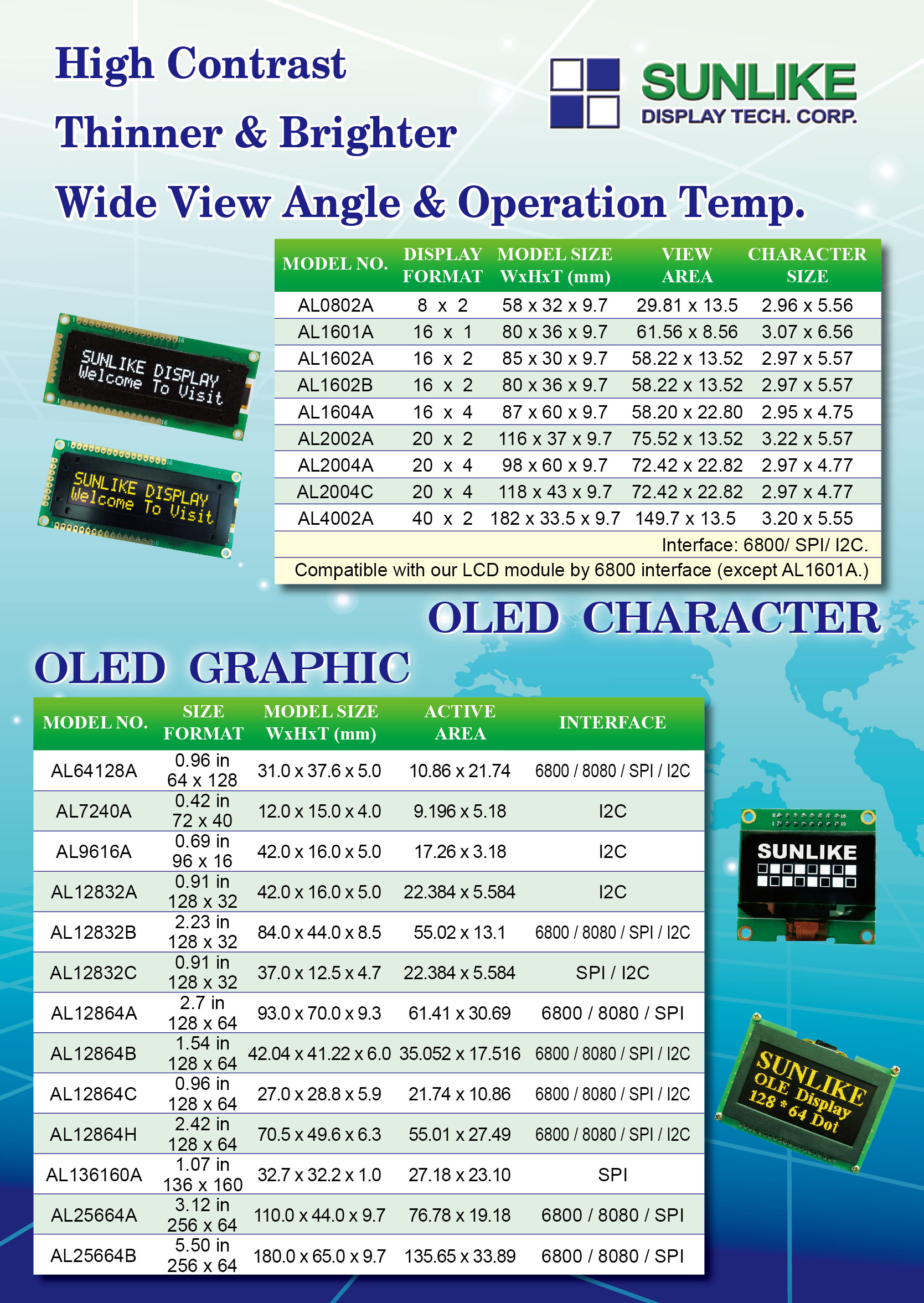

OLED Character Modules
| MODEL NO. | DISPLAY | MODEL SIZE | VIEW | CHARACTER | DOT | CONTROLLER | PROCESS | BACKLIGHT |
| FORMAT | WxHxT (mm) | AREA | SIZE | SIZE | IC | |||
| AL1602A | 16 x 2 | 85 x 30 x 9.7 | 58.22 x 13.52 | 2.97 x 5.57 | .57 x .67 | 6800 / SPI / I2C | COG+Board | White , Yellow |
| AL1602B | 16 x 2 | 80 x 36 x 9.7 | 58.22 x 13.52 | 2.97 x 5.57 | .57 x .67 | |||
| AL2002A | 20 x 2 | 116 x 37 x 9.7 | 75.52 x 13.52 | 3.22 x 5.57 | .60 x .65 | |||
| AL2004A | 20 x 4 | 98 x 60 x 9.7 | 72.42 x 22.82 | 2.97 x 4.77 | .57 x .57 | |||
| AL2004C | 20 x 4 | 118 x 43 x 9.7 | 72.42 x 22.82 | 2.97 x 4.77 | .57 x .57 | |||
| AL4002A | 40 x 2 | 182 x 33.5 x 9.7 | 149.7 x 13.5 | 3.20 x 5.55 | .60 x .65 |
OLED Graphic Modules
| MODEL NO. | SIZE (inch) | DISPLAY | MODEL SIZE | ACTIVE | INTERFACE | DRIVER IC |
| FORMAT | WxHxT (mm) | AREA | ||||
| AL64128A | 0.96 | 64 x 128 | 31.0 x 37.6 x 5.0 | 10.86 x 21.74 | 6800 / 8080 / SPI / I2C | SH1107 |
| AL7240A | 0.42 | 72 x 40 | 12.0 x 15.0 x 4.0 | 9.196 x 5.18 | I2C | SH1106 |
| AL9616A | 0.69 | 96 x 16 | 42.0 x 16.0 x 5.0 | 17.26 x 3.18 | I2C | SSD1306 |
| AL12832A | 0.91 | 128 x 32 | 42.0 x 16.0 x 5.0 | 22.384 x 5.584 | I2C | SSD1306 |
| AL12832B | 2.23 | 128 x 32 | 84.0 x 44.0 x 8.5 | 55.02 x 13.1 | 6800 / 8080 / SPI / I2C | SSD1309 |
| AL12832C | 0.91 | 128 x 32 | 37.0 x 12.5 x 4.7 | 22.384 x 5.584 | SPI / I2C | SSD1306 |
| AL12864A | 2.7 | 128 x 64 | 93.0 x 70.0 x 9.3 | 61.41 x 30.69 | 6800 / 8080 / SPI | SSD1322 |
| AL12864B | 1.54 | 128 x 64 | 42.04 x 41.22 x 6.0 | 35.052 x 17.516 | 6800 / 8080 / SPI / I2C | SSD1309 |
| AL12864C | 0.96 | 128 x 64 | 27.0 x 28.8 x 5.9 | 21.74 x 10.86 | 6800 / 8080 / SPI / I2C | SSD1306 |
| AL12864H | 2.42 | 128 x 64 | 70.5 x 49.6 x 6.3 | 55.01 x 27.49 | 6800 / 8080 / SPI / I2C | SSD1309 |
| AL136160A | 1.07 | 136 x 160 | 32.7 x 32.2 x 1.0 | 27.18 x 23.10 | SPI | SH1108 |
| AL25664A | 3.1 | 256 x 64 | 110.0 x 44.0 x 9.7 | 76.78 x 19.18 | 6800 / 8080 / SPI | SSD1322 |
| AL25664B | 5.5 | 256 x 64 | 180.0 x 65.0 x 9.7 | 135.65 x 33.89 | 6800 / 8080 / SPI | SSD1322 |
