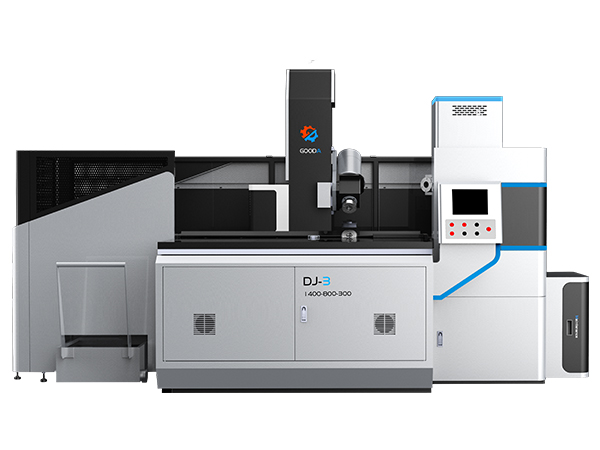

PLC-Chamfering Machine Specifications

NO.

Items

Name

Specification

1

Model

Trinity ganged chamfering machine

DJ X3 -1000X250

DJ X3 -1200X250

DJ X3 -1400X300

2

Cutting capacity

Control axis number

3

3

3

Maximum chamfer

C4

C4

C4

Cutting width mm

(25-250)*(100-600)*(100-1000）

(25-250)*(100-700)*(100-1200)

(25-300)*(100-800)*(100-1400)

3

Worktable

Dimensions mm

580*1150

700*1350

800*1550

Max loading weight

2000

2000

2000

4

Spindle

Spindle speed rpm

2800

2800

2800

Spindle power KW

1.1

1.1

1.1

Spindle diameter mm

90

90

90

5

z axis

w axis

z/w axis motor power KW

1.0/0.75

1.0/0.75

1.0/0.75

z/w Max feed speed mm/min

10/1

10/1

10/1

z/w Max cutting speed mm/min

4/1

4/1

4/1

6

Tank capacity

Pneumatic Float Magnetic chuck System

600*1000

700*1200

800*1400

Lubrication injection ports

2

2

2

7

Power

Power

AC380V/220 40KVA

AC380V/220 40KVA

AC380V/220 40KVA

8

Net weight

Machine net weight KG

2600

3000

3400
