Linear Motor Series

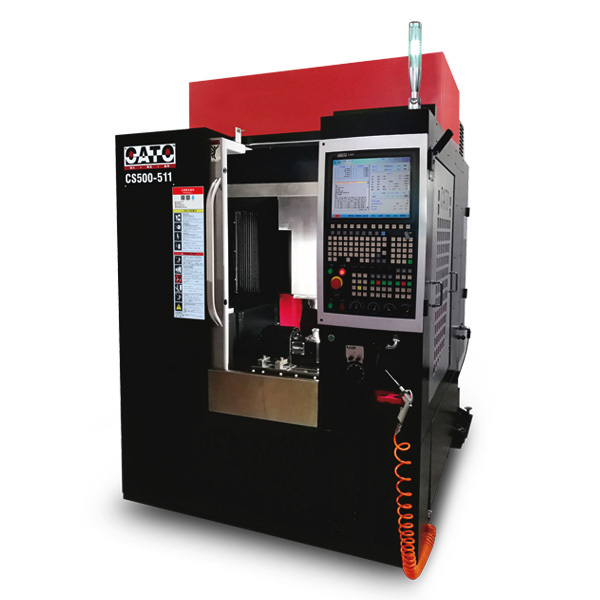

Linear Motor 5 Axis Machining Center
CS500-5-11

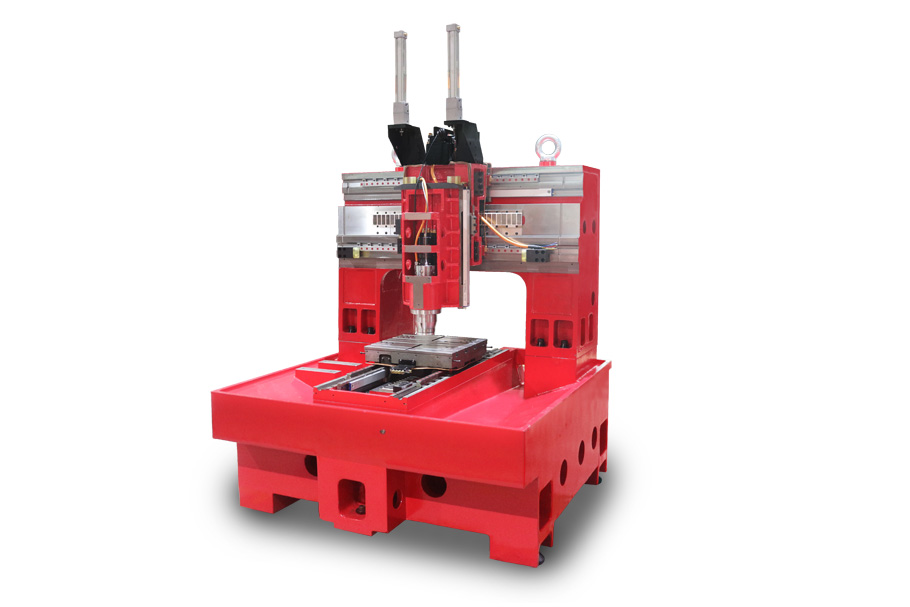

High rigidity

Column base, beam, table, etc. are used high-strength cast iron materials, modeling of the resin sand process, Reasonable material ratio and optimized layout structure, to improve the large part and the machine stiffness and stability, effectively inhibit the deformation and vibration of the machine caused by cutting force.



Linear motor allocated with grating

X/Y/ Z axis are use big torque linear motor allocated with grating, full closed control, X/Y/Z axis are use rolling linear slider, achieve a quick feed rate and positioning precision.



Spindle

The spindle is a motor built-in spindle.Built-in three-phase AC induction motor, the stepless speed control by inverter. The spindle has the characteristics of compact structure, light weight, small inertia, small vibration, low noise and others, can achieve high speed, high precision and high operation stability.



High precision

Positioning precision:±0.0015/300mm

Repeating positioning precision:±0.001mm

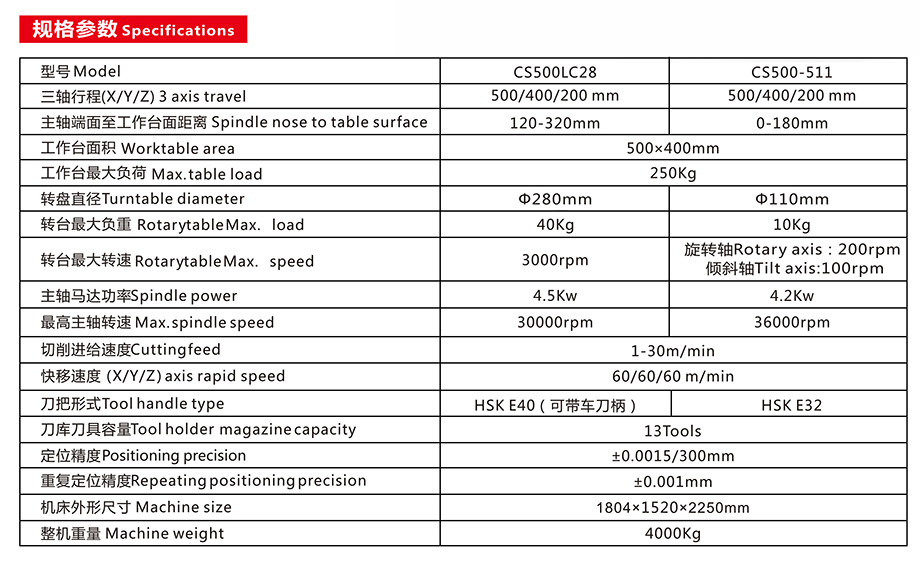

Specification

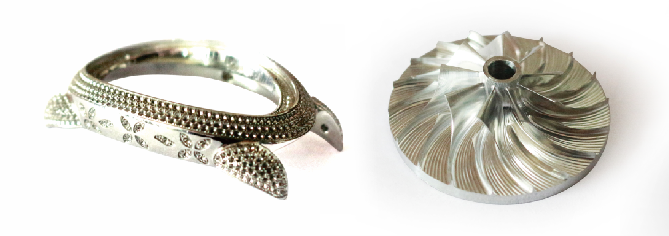

Mold
Machine
Vehicle
