ATEX Dust Collector (LS series)

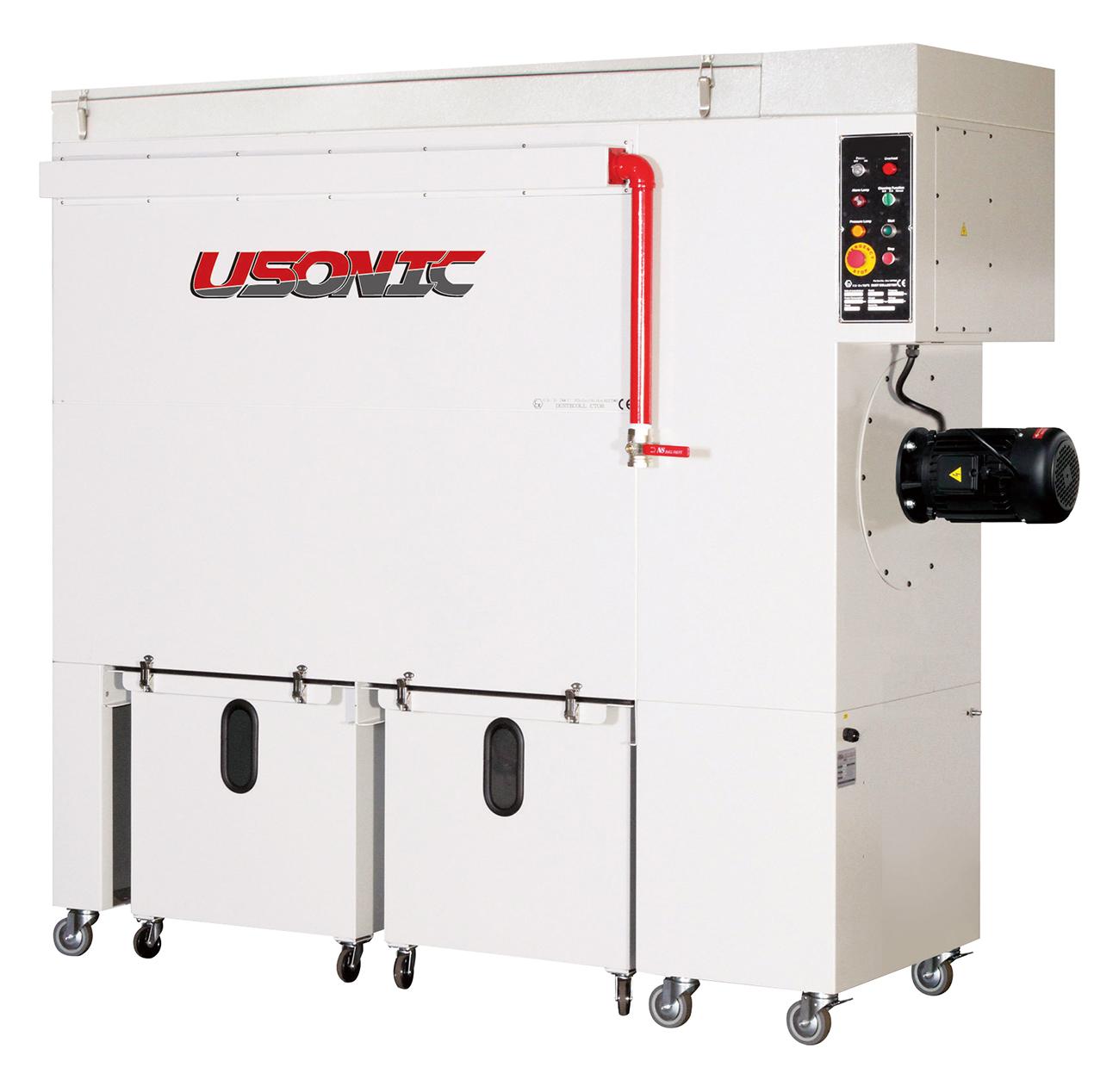

5HP ATEX Dust collector
LS-500ECD2

Our LS serie has been designed for an industrial use, to extract different kind of dust and dry shavings from a single or multiple dust sources.

The blower is fitted with a high efficiency centrifugal fan with curving blades. The fan is positioned inside the unit and therefore soundproofed to obtain a low sound level.

Its fine filter material ensures you a residual dust content of less than 0.1mg/m3.

ULTIMATE DRY DUST CONTROL SOLUTION FOR WIDE RANGE OF APPLICATIONS

Featuring a built-in Fire Control system to prevent fire danger.

Ideal for:

Woodworking • Pharmaceutical • Fiber glass • Ceramic/Stone • Food Processing • CNC Machining • Laser or Plasma Cutting • Metal Industry • Cosmetic Industry • Plastic Industry

Specification

SPECIFICATIONS LS-500ECD2
Inlet Size 250 mm (12")
Motor 3.7 KW(5HP)
Air Volume 88 CMM (3,108 CFM) @60Hz
Static Pressure (Max) 3,800 Pa @60Hz
Filter Cleaning     By compressed air
Filter Material Polyester, 10 μm
Polyester + Teflon Membrane, 0.5 μm
Number of filters 10 cartridges
Filter area   48 m²
Dust Tank Volume 0.23 m³ x 2
Compressed Air Required 6 ~ 8 kgs / cm² (5.8~7.8 bar)
Noise Rate MAX. 82 dB
Inlet Diameter 250mm / 100mm x 5 (optional)
N.W. / G.W. 465 / 575 kg
Packing Dimensions 2.61L x 0.76W x 2.18H (m)

NOTES:
THE MANUFACTURE RESSERVES THE RIGHT TO CHANGE ANY DESIGN OF THIS MACHINE WIHTOUT PRIORNOTIFICATION
