Hi-Speed Built-in Spindle
High Speed Spindle： 06A00752C20ES
Applications :
• Carving Machine.
• Tooth Mold Making Machine.
Spindle Features :
• Power Output：600 W
• Maximum Speed：20,000 rpm
• No cooling, automatic tool changer
• Rigorous Quality Control Creates Dependable Quality ！
• Our motors are manufactured according to customer's usage and material. The parts used are customized to suit customer’s requirements.
Specification

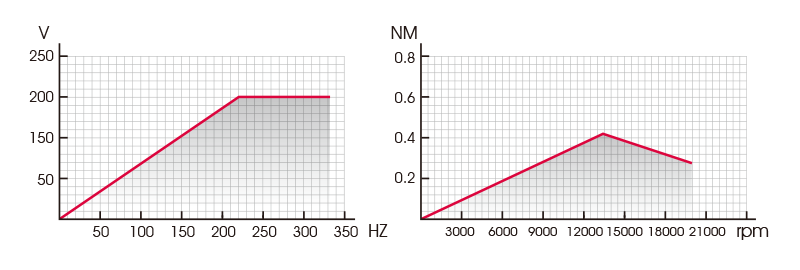

High Speed Spindle： CURVE

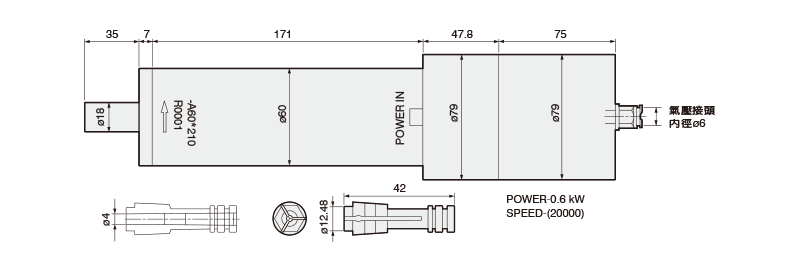

High Speed Spindle： Dimensions
SPECIFICATION
| Model | 06A00752C20ES |
|
Motor Features |
|
|
Collected Actuation Pressure |
6 kg/cm2 |
|
Voltage |
AC 3ø |
|
Power Output |
600 W |
|
Maximum Speed |
20000 rpm |
|
Maximum Dynamic Runout |
0.01 mm |
|
Body Size |
60 mm h6 |
|
Spindle Diameter |
ø3~6 mm |
