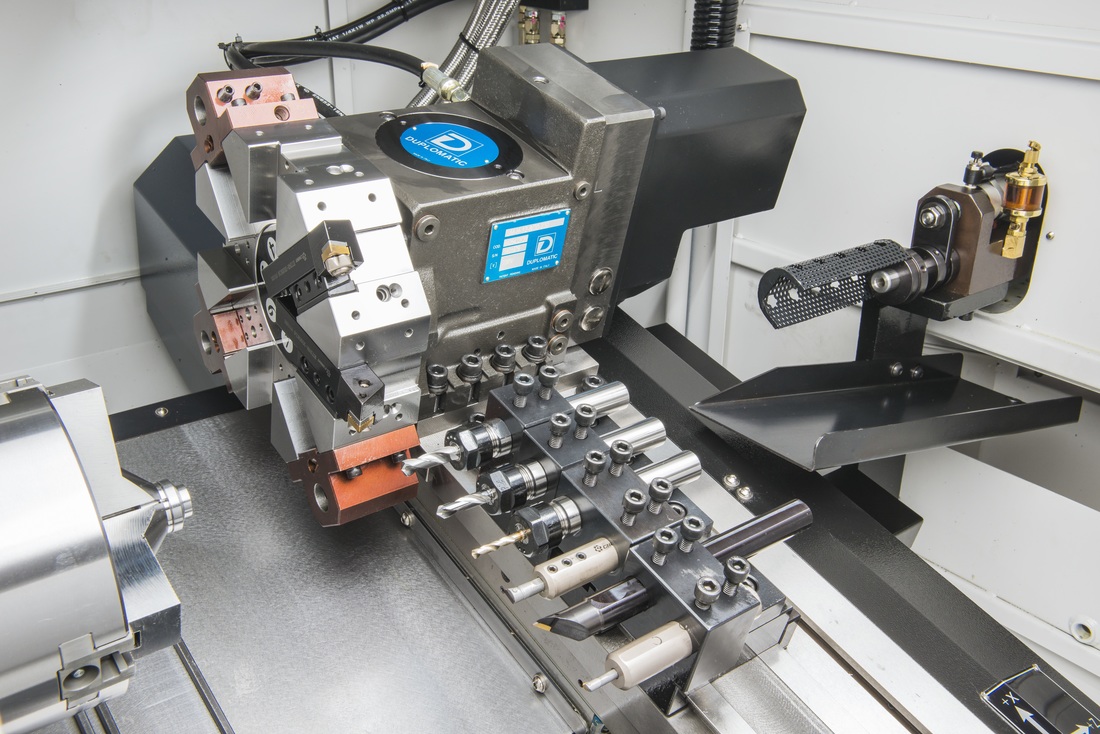

ST- Series Slant Bed CNC Turning Center
ST-10 / ST-11 / ST-12
FEATURES:
‧ 15〫 Slant Bed, easy for collecting chips and draining.
‧ Wide and stable bed of slideway with high precision NSK ballscrew.
‧ Bar feeder can be equipped with to enhance efficiency.
Specification
SPECIFICATION:
| SPECIFICATIONS | Unit | ST-10 | ST-10T | ST-10TT | ST-12 | ST-12T |
| CAPACITY | ||||||
| Swing over Z way cover | mm | 350 | 350 | 350 | 400 | 400 |
| Max. turning diameter | mm | 120 | 120 | 120 | 180 | 180 |
| Swing over cross slide | mm | 120 | 120 | 120 | 120 | 120 |
| Max. turning length | mm | 120 | 120 | 200 | 150 | 150 |
| TRAVEL | ||||||
| X-axis travel | mm | 250 | 180+20 | 180+20 | 300 | 217 |
| Z-axis travel | mm | 250 | 200+20 | 200+20 | 460+20 | 370+20 |
| SPINDLE | ||||||
| Type of spindle nose | ISO | A2-5 | A2-6 | A2-6 | ||
| Chuck diameter | mm | 150 (6") | 204 | 204 | ||
| Spindle bearing inner diameter | mm | 90 (3.54") | 110 | 110 | ||
| Through spindle hole diameter | mm | 52 (2") | 62 | 62 | ||
| Through bar capacity | mm | 42 (1.65") | 52 | 52 | ||
| Spindle drive motor(cont/30min) | KW (Hp) | 7.5 (10) | 11(15) | 11(15) | ||
| Spindle speed range | rpm | 5000 | 5000 | |||
| TURRET | ||||||
| Number of tool stations | - | 8 (SW=220) | 8 (SW=220) | - | 8 (SW=220) | |
| Turret type | GANG TYPE | STATIC | STATIC | GANG TYPE | STATIC | |
| Turret indexing time | sec | - | 0.9 | 0.9 | - | 0.9 |
| Shank height of square tool | mm | 16 | 20 | 20 | - | 20 |
| Shank diameter for boring bar | mm | 20 | 20 | 20 | - | 25 |
| FEEDRATE | ||||||
| Rapid traverse rate X-axis | mm/min | 15000 | 15000 | 15000 | 15000 | 15000 |
| Rapid traverse rate Z-axis | mm/min | 15000 | 15000 | 15000 | 15000 | 15000 |
| Ballscrew diameter of X-axis | mm | 25*P5 | 25*P5 | 25*P5 | 28*P6 | 28*P6 |
| Ballscrew diameter of Z-axis | mm | 25*P5 | 25*P5 | 25*P5 | 28*P6 | 28*P6 |
| TAILSTOCK | ||||||
| Tailstock travel | mm | - | - | 290 | - | - |
| Tailstock spindle diameter | mm | - | - | 50 | - | - |
| Tailstock spindle travel | mm | - | - | 90 | - | - |
| Taper hole of tailstock spindle | - | - | MT-3 | - | - | |
| REMARKS | ||||||
| Coolant pump motor | Kw (Hp) | 0.2 (1/4) | 0.2 (1/4) | 0.2 (1/4) | 0.6 (3/4) | 0.6 (3/4) |
| Coolant tank capacity | L | 139 | 139 | 139 | 200 | 200 |
| Floor space | mm | 2034 x 1395 | 2034 x 1395 | 2034 x 1395 | 2468 x 2213 | 2468 x 2213 |
| Machine weight | Kg | 1950 | 2150 | 2150 | 2400 | 2550 |
