Blown Film Extruder

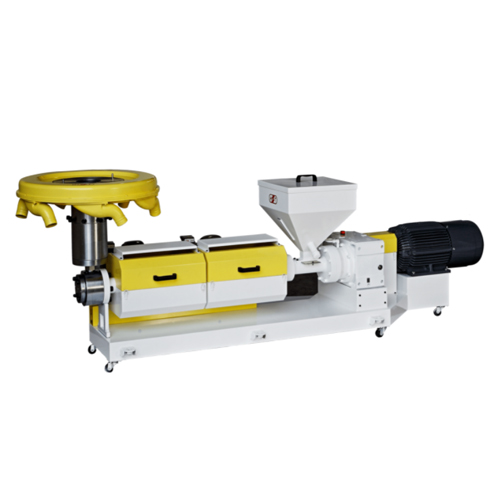

Extrusion Blown Film 45/55/65 Extruder

● Adopt German SIEMENS Inverter Duty Motor.


● Save Space by Coupling Design.


● Cooling by High Power Blower.


● Special Exhaust Outlet Design.


● Enhance Cooling Effect by Barrel Grooved Design.


● Vertical Transfer for Screen Changer.


● High Capacity Hopper.


● Invisible Circuit, Simple Appearance.

Specification

BLOWN FILM EQUIPMENT OF EXTRUDER UNIT
MODEL FC45 FC55 FC65
SCREW DIAMETER 45MM 55MM 65MM
L/D 30 30 30
MATERIAL JIS SKD61
BARREL GENERAL FEEDING
MATERIAL JIS SACM640
CONTROL ZONE
OF BARREL TEMPERATURE
2 ZONES 3 ZONES 4 ZONES
EXTRUDER MOTOR AC2HP AC30HP AC40HP
GEAR BOX
REDUCER RATIO
1:12 1:12 1:12
TYPR OF DRIVING BY COUPLING
BARREL COOLING
AND BLOWER
1/2HP*2PCS 1/2HP*3PCS 1/2HP*4PCS
COOLING FOR
BARREL FEEDING ZONE
BY WATER
TYPE OF EXTRUDER FRAME LOW BASE
MACHINE SIZE
LXWXH(M)
2.75*0.8*0.92 M 3.05*0.9*0.92M 3.5*0.98*1.18M

REMARK: SCREEN CHANGER, CONTROL PANEL, DIE ROTATOR DEVICE, DIE HEAD, AIR RING ARE NOT INCLUDED.
