Metal Aluminum

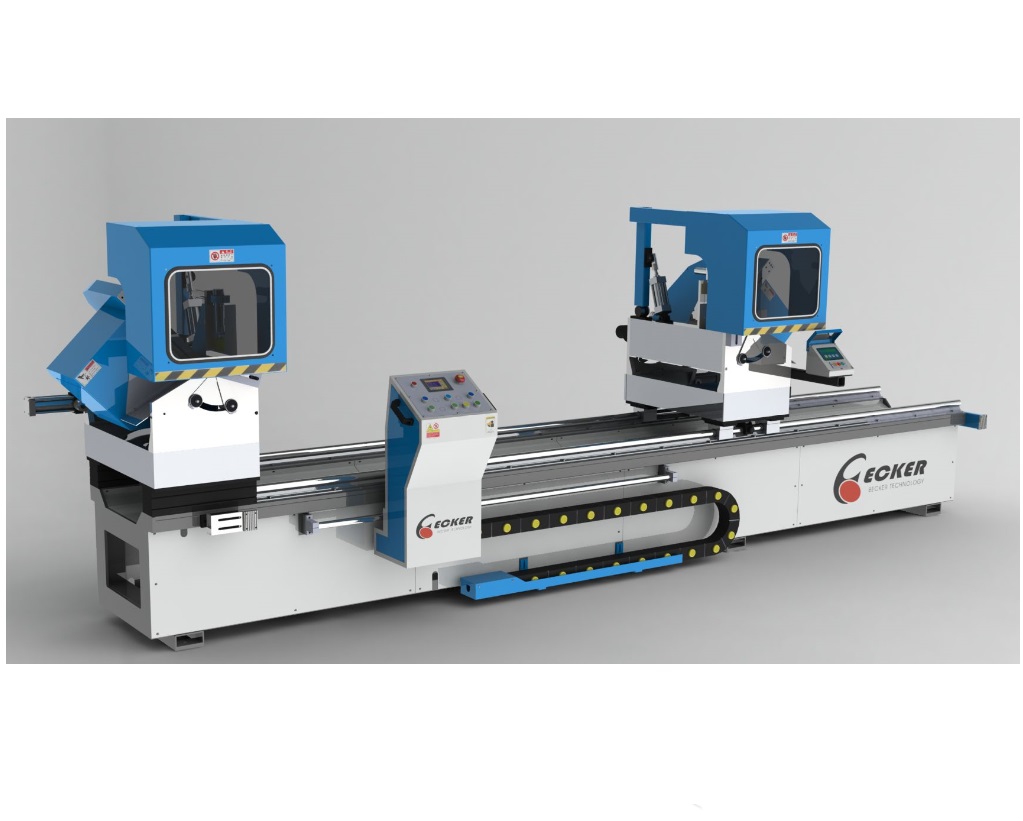

BK-2S500
BK-2S500
BK-2S500
Contact Supplier
Add to Favorites
Specification
SPECIFICATIONS
MODEL
BK-2S500
角度、長度控制方式
主軸鼻端至工作臺距離
加工長度精度
±0.15mm
加工角度精度
±0.15度
自動定位功能
光學尺或伺服馬達
裁切距離及角度
0° 最小裁切距離450mm,裁切尺寸140x160
15° 最小裁切距離450mm,裁切尺寸140x150
22° 最小裁切距離450mm,裁切尺寸140x145
30° 最小裁切距離450mm,裁切尺寸140x135
45° 最小裁切距離450mm,裁切尺寸140x110
最大裁切長度4000mm（可選購其他長度）
鋸片擺動角度範圍
45° ～ 90°
主軸轉速
2800r/min
馬達
5HPx2
鋸片尺寸
∅ 20° x 1° x 120T
氣壓壓力
4~6KGS
機械尺寸（LxWxH）
5000x1300x1700mm
重量
1900kgs/2200kgs
