Products

PUMPS

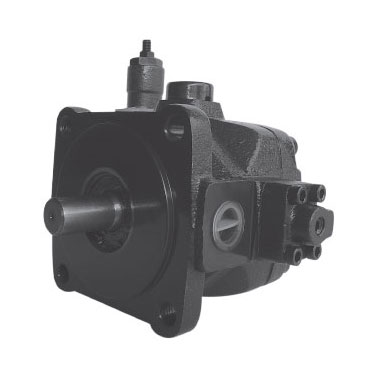

MEDIUM-PRES. VARIABLE DISPLACEMENT VANE PUMPS
VDV-1A, 2A / VDV-1B, 2B

Variable pumps type.

Maximum pressure is 140kgf/cm2.
Displacement range is from 20cc to 86cc (at 1800rpm)
There’re 2 adjustable types:
Standard and remote control type.

Best uses in include in industrial machines,
machine tools and mobile hydraulics
systems for vehicles.

FEATURES

  • High efficiency, high pressure operation.
  • No vibration and low noise level.

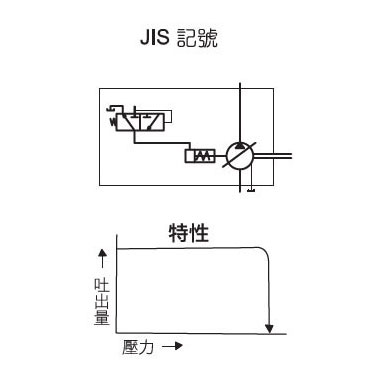

  • Instant and sharp cut-off characteristics.
  • Less horsepower loss.
  • Easy adjustment in handling and maintenance.

Specification

SPECIFICATION

MODEL NUMBER NO-LOAD DELIVERY (1/MIN)
(1800 R.P.M.)
ADJUSTING PRESSURE RANGE
KGF/CM²
RUNNING SPEED (RPM) MAX. PRESSURE
KGF/CM²
Max Min
VDV-1※-※20※35 20 A: 15 ~ 35 kgf/cm²
B: 20 ~ 70 kgf/cm²
C: 50 ~ 105 kgf/cm²
D: 70 ~ 140 kgf/cm²
1800 800 140
VDV-1※-※25※35 25
VDV-1※-※30※35 30
VDV-1※-※40※35 40
VDV-2※-※54※35 54
VDV-2※-※70※35 70   105
VDV-2※-※86※35 86 70
