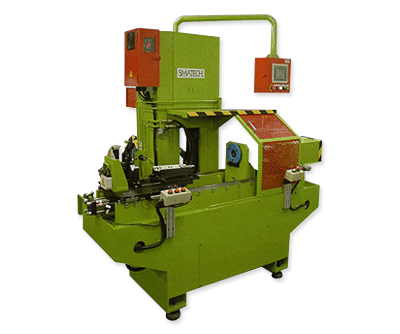

Shock Absorber Assembly Machine
Fastening torque
Max. 127.4 N-m
Cylinder stroke
280 mm
Spring compressed force
50~1000 kgf
Spring compressed stroke
450 mm
Hydraulic pressure
15~35 kgf/cm²
Pneumatic pressure
4~5 kgf/cm²
Jig
Changeable and adjustable
Electric control
PLC
Operator interface
Machine dimensions (WxLxH) (mm)
1850(W) x 1240(L) x 2400(H)
