VERTICAL MACHINING CENTER

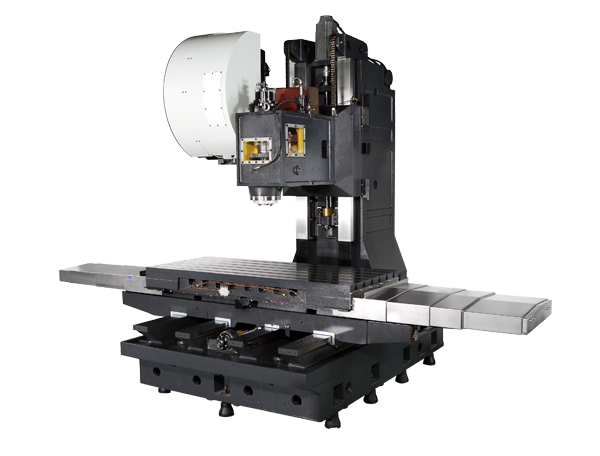

Box Way |VB-150/170/200
VB-150/170/200

Rigid design, high stability structure.
Casting items are all with the furnace stress relieved.
3 axes are all pre-tensioned C3 Ball screw & nut.
Durable hardened-treatment box type guide-way.
All of the series by oil/coolant water separation design.
All of the series by TRELLEBORG wear resistant sheets.

Rigid design high precision machine frame structure

High strength machine frame, all casting, 100% Taiwan-made.

Box type guide-ways reinforces working performance and greatly reduces tooling wear-out.

Delicate scraping, all 3 axes equip C3 class ball screw.

All of 3 axes by direct-drive design.

Wide base design with a better stability.

All of the series by oil-coolant spindle.

Z axis equipping with a counterbalance weight secures its travel perfectly stabilized & smoothened in the rapid speed.

Main spindle available with the option of BT-40 and BT-50.

Specification

Specifications

*We reserve the right to modify the design and specifications without notice in advance.

Standard Equipment

  • Rigid tapping
  • Spindle air blast device
  • Full enclosed splash guard
  • Heat exchanger for electrical cabinet
  • Auto lubrication system
  • Spindle oil cooler
  • Cooling system and coolant tank
  • Work lamp
  • Foundation bolts and blocks
  • Tool box with tools
  • Operation and maintenance manual
  • Coolant flushing device
  • Flushing gun
  • Screw type chip conveyor



Optional Equipment

  • Coolant through spindle
  • Chip conveyor
  • Air conditioner for electric cabinet
  • 4th axis rotary table
  • Linear scale
  • Tool length measurement
  • BT50 gear type spindle
