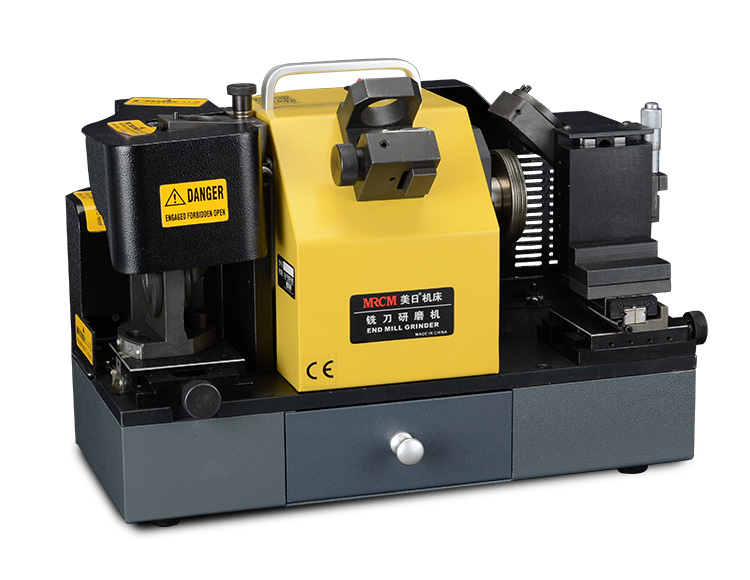

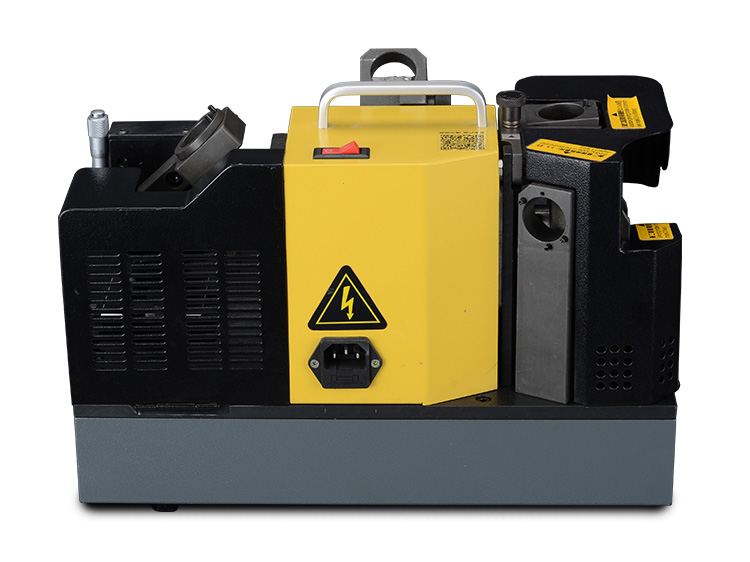

PRODUCT INSTRUCTION
1. It is specialized in re-sharpening end mill and corner radius end mill, it can grind 2-flute, 3-flute and 4-flute. Also use the tungsten bar to cut cutting edge directly.
2. It can grind the radius of corner radius end mill as R0.5, R1, R1.5 and R2. If there is any other radius, we can make the customized grinding wheel.
3. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
4. With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
5. The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.
STANDARD EQUIPMENT
.JPG)
SPECIFICATION
Model：MR-X6R
Diameter：Φ4-Φ14mm
Power：220V/250W
Speed：4400rpm
Point angle：0°-5°
Dimension：42*25*30cm
Weight：3KG
Standard Equipment：Face grinding wheel: SDC (for carbide)×1
R grinding wheel：SDC (for carbide)×1
Six collets：Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
Two collet chucks：2,4 flutes ×1 piece;3,6 flutes×1 piece
Optional Equipment：Face grinding wheel: CBN (for HSS)
R grinding wheel：SDC (for carbide)×1
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small or medium enterprises, family workshops, personal repair, all can achieve satisfying grinding results。
INSISTING ON ORIGINAL DESIGN FROM CHINA
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.
