Specialty Machinery
Specialty Machinery

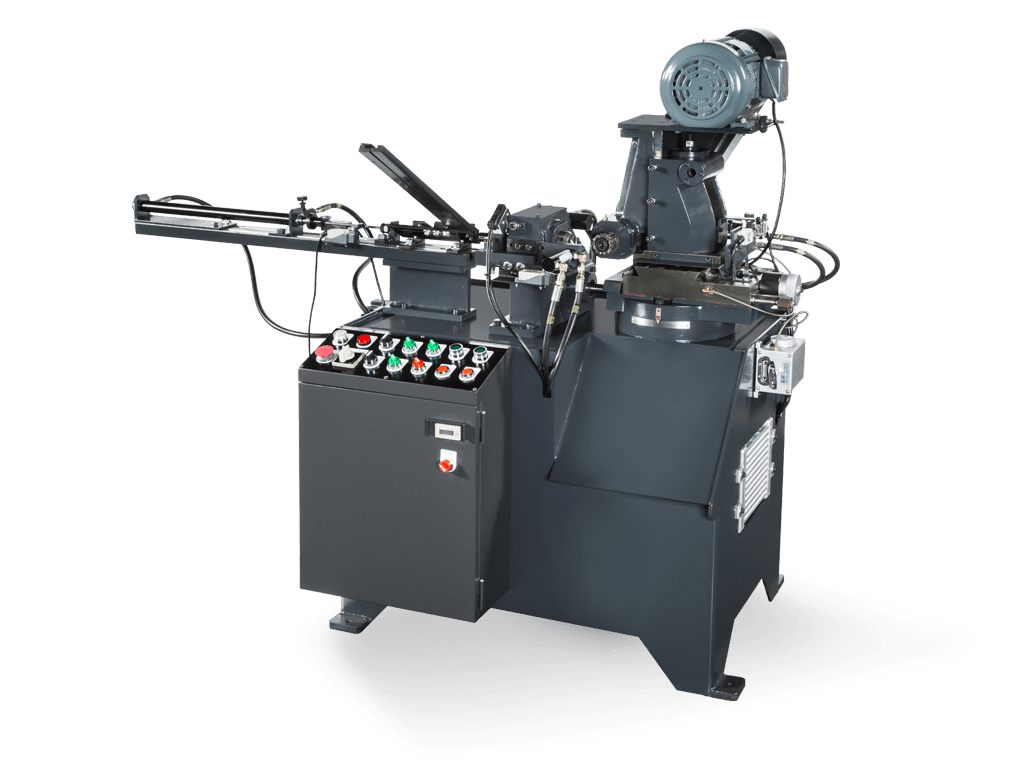

KT-35/35G

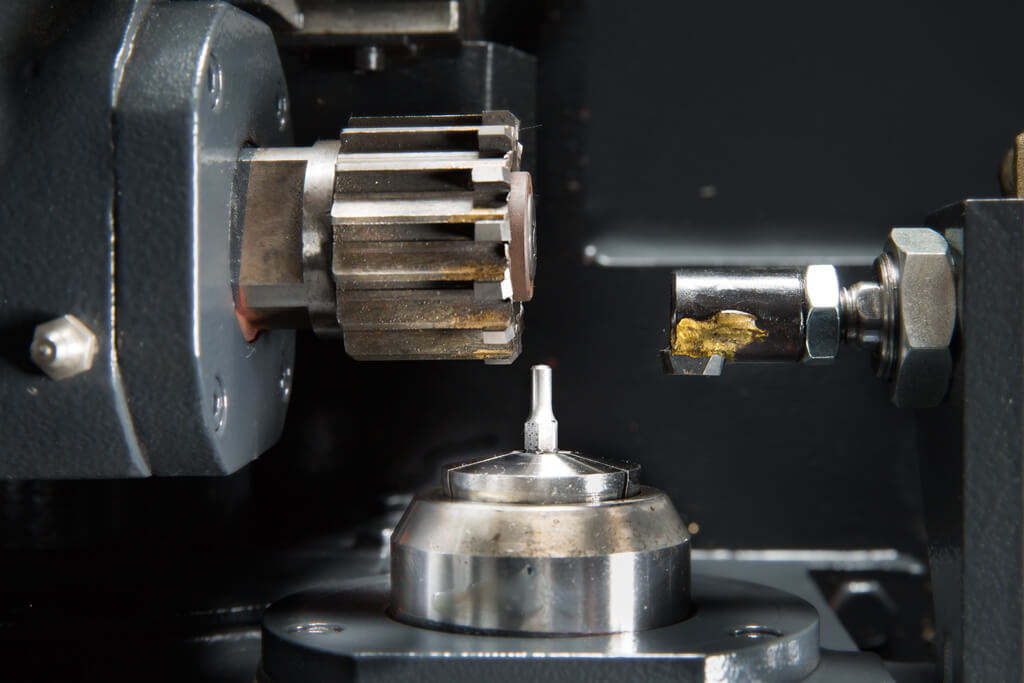

Hex/Square Milling Machine is the extend model of screwdriver forming machine. The difference is that this machine is using horizontal milling head design to mill multilateral forming screwdriver head (Hex/Square). The unique splitter operation systems can precise the milling angles and the high stable splitter and smooth operation system is highly recommend by customers.
Specification
Specifications
| KT-35 | KT-35G | |
|---|---|---|
| Workpiece Diameter： | 3 - 10mm | 3 - 10mm |
| Workpiece Length： | 25 - 100mm | 25 - 100mm |
| Material Type： | Hex/ Square | Hex/ Square/Round |
| Collet Chuck： | 25型 | 25型 |
| Spindle Motor： | 2HP | 2HP |
| Hydraulic Motor： | 1HP | 1HP |
| Capacity (pce/min.)： | 10 - 15pcs. | 10 - 15pcs. |
| Complete Product Type： | SQ/HEX | SQ/HEX |
| Machine Size(LxWxH)： | 170x110x155 | 170x110x155 |
| Machine Weight： | 480kg | 480kg |
