Straightening Machine C1-101

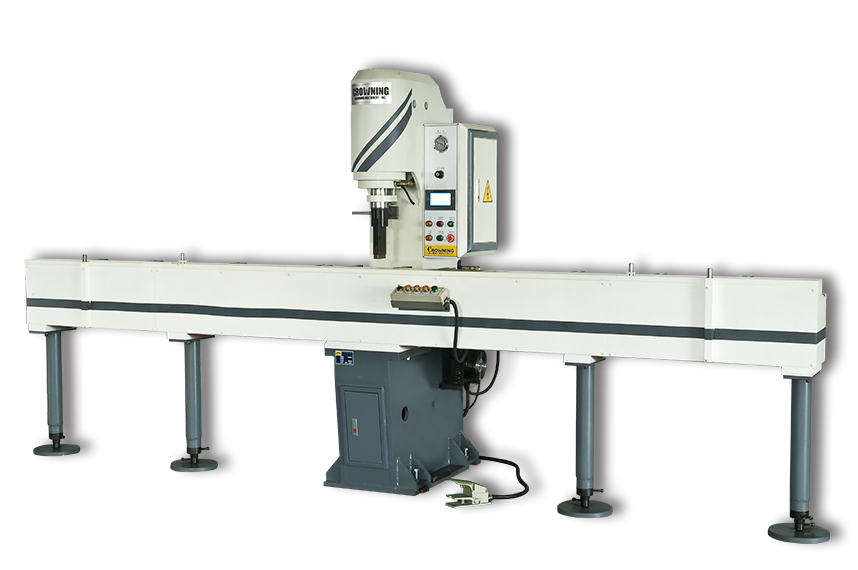

C1-101C Human-machine Digital-control - Straightening Machine
C1-101C
C1-101C Human-machine Digital-control - Linear Dedicated and Plate Straightening Machine
The easy-to-operate machine adoopts human-machine positioning and supports to straighten linear and various plates and rack gears.
It is the best choice before/after milling a workpiece.
The machine allows 0.01mm micro-adjustment.
Because of the different curvature and stress of heat-treated plates, the additional 3 micro-adjustment buttons on the machine allows operators to easily process by selecting and pressing with 0.01mm micro-adjustment.
It complies with an efficient, and fast straightening machine.
Specification
Item
| Can Working Material | Can Working Thickness | Can Working Width | Can Working Length | Motor output | Output Tonnage |
| S45C | 35mm | 35mm |
2100mm (Length can be added to 4.1m) |
3HP2.2KW~ 5HP3.7KW |
30T |
