Pneumatic Flash Butt Welding Machine

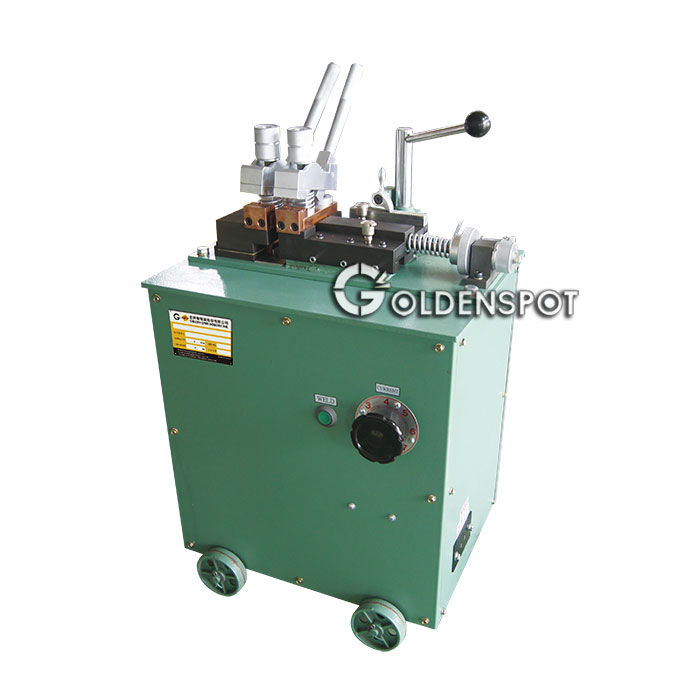

Pneumatic Manual Butt Welding Machine
SB-050-M
Features
1.COPPER / ALUMINUIM / STAINLESS STEEL / IRON / STEEL......WIRE WELDER.
2.COPPER / ALUMINIUM STRANDED WIRE WELDER.
3.Handy operate to regular operator.
Applications

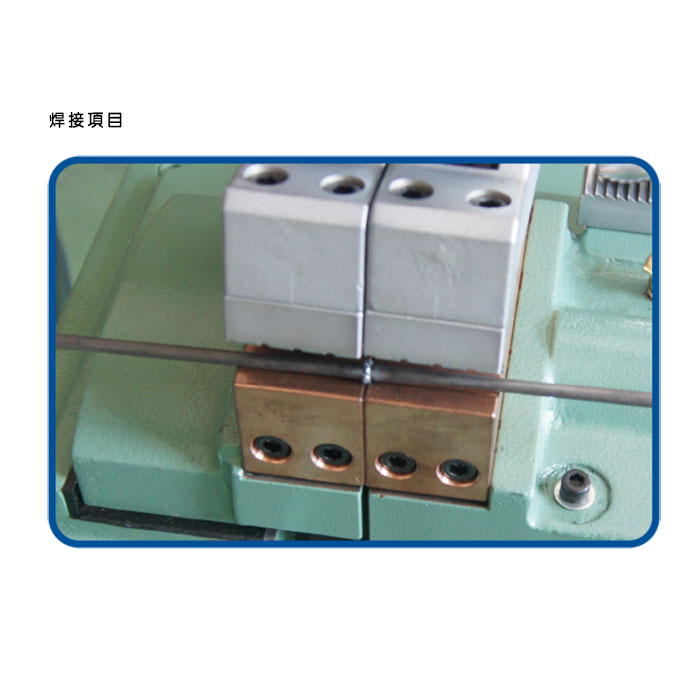

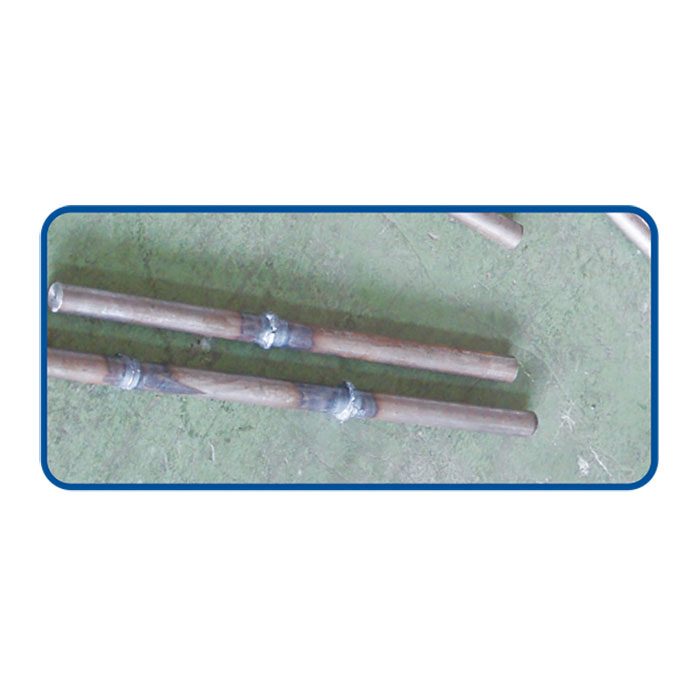

Suitable for wire material end to end connecting.
Specification
Specification Table:
| Model | Rated Capacity | Voltage | Frequency | Max. Short Circuit Current | Weld Wire | Duty | Machine Size | Machine Weight |
|---|---|---|---|---|---|---|---|---|
| NO. | KVA | V | HZ | A | mm | % | W x H x D mm | kg |
| SB-050-M | 5 | 220/380 | 50/60 | 14,000 | 1.6 - 6.0 | 10 | 470 x 930 x 350 | 119 |
| SB-100-M | 10 | 220/380 | 50/60 | 16,000 | 5.0 - 13.0 | 10 | 540 x 980 x 500 | 156 |
