Compression Type Latch
CTA-6170 Over-Center Lever Latch
槓桿型壓縮式門扣 CTA-6170
Combining strength, ease of installation, and simplicity of operation, The single-motion opening action of latch applies built-in leverage against the keeper to provide mechanical advantage to help pry stuck doors open. Max Load : 2000 N (200KG)(400 lbs)
Spec
Material:Main Body-Aluminum Alloy (ADC) ; Pin-Titanium
Finish: Black Powder Coated
Ordering Instructions
1. PRT-6170 & Aluminum Tube are selection parts.
2. Aluminum Tube Length : 500mm & 1000mm.

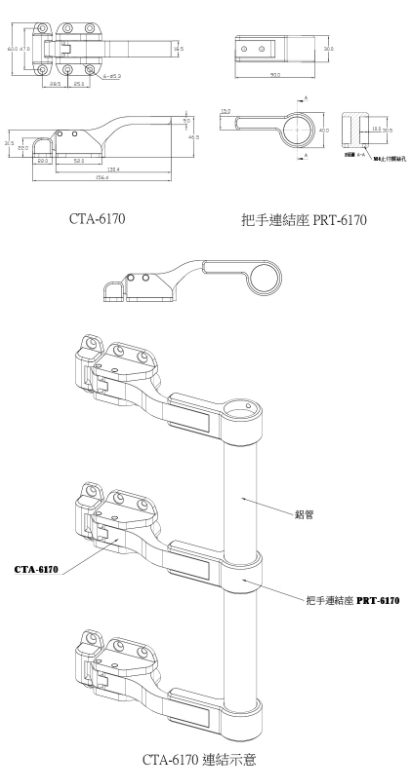

Specification
