DIRECTIONAL CONTROL SERIES

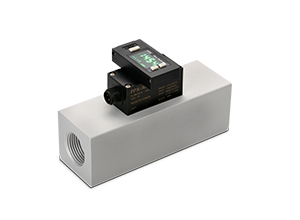

FPX series Differential Pressure Type Flow Switch／ Large Flow
FPX
1. Easy to install:
Compact and lightweight.
2. Visualization:
Rotatable screen, high visibility.
3. Through bore construction:
Resistance to foreign matter.
4. Switching function:
Flow unit - L/min/CFM. Analog voltage - 0-10V/1-5V.
5. Equivalent to IP64
Specification
|
Model |
FPX |
Fluid |
Air |
|
Pressure range (Mpa) |
0.1~0.7 |
Material |
Body: Brass (nickel plated) , Plastic part: Nylon, Pbt. |
|
Port size |
PT1 |
Rated voltage |
24±10%VDC |
|
Power consumption |
Current consumption: 50mA or less |
Pressure Switch/Output |
Monitor output: Analog voltage 1-5V、0-10V, Analog current 4-20mA. Switch output: NPN/PNP". |
