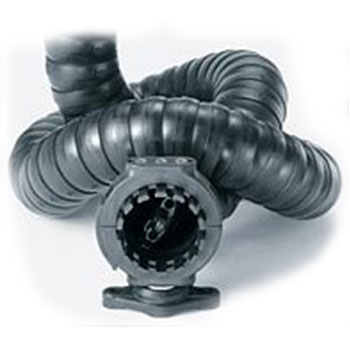

triflex® R 3D e-chain® specially made for robotic applications

triflex® R 3D e-chain® specially made for
robotic applications

triflex® R (R for "round") is the third generation 3-axis energy chains® from igus®.

The multi-axis energy supply system triflex® R has been specially developed for the sophisticated

6-axis robotic applications in harsh industrial environments. Some of the important design features are:

Fiber rod option for the partial reinforcement of the triflex® R, approximately +/- 10° .

Torsion per chain link, high tensile strength through ball-and-socket joint.

More than 100 components have been made available meanwhile in the triflex® R product range,

so that all requirements can be covered from large welding robots up to the small pallet robots.

triflex® R has received the iF design award.



TRC = closed - closed version for protection of the cables against
dirt and chips



Simplest installation and dismantling through the ball-and-socket system



Very simple filling -
Just push in cable - easy system
