Angle Sawing Machine (Semi-Automatic／ Fully Automatic)

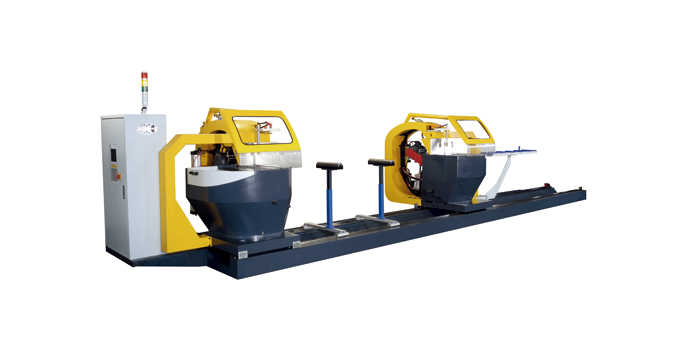

JIH-T5 - 5 Axis Automatic Double Head Tilting & Rotary Sawing Machine
JIH - T5
Feature
1. Saw Tilting 0 ~ 45˚ Degrees Automatically.
2. Worktable Rotary ±0 ~ 67.5˚ Degrees Automatically.
3. Positioning Cutting Length Automatically.
4. 5 Axis Control By Servomotor, Operation By Touch Screen.
5. X Axis Moving By Lingering Guide Way To Ensure
Accuracy For Positioning.
6. Mobile Saw Could Be Feeding And Cutting Automatically.
＊Optional Auto 3000 Mobile saw could be feeding and cutting
automatically.
Specification
Optional:•Automatic Feeding(Push)•Chip Collector•Saw Blade
| Model | JIH-T5-24 | JIH - T5S -26 | JIH - T5S -30 |
| Control Mode Of Angle And Length | Servomotor Driver | NC Control Cutting Length | NC Control Cutting Length |
| Precision Of Length | ± 0.15 mm | ±0.15mm | ±0.15mm |
| Precision Of Cutting Angle | ± 0.15° | ±0.15° | ±0.15° |
| Automatic Positioning Function | Yes | Opt.connect With JIH-AUTO 3000 | Opt.connect With JIH-AUTO 3000 |
| Cutting Capacity | For 90° Cuts:190 mm x 220 mm For 45° Cuts:130 mm x 310 mm Max Cuts Length 4,500mm(Opt.6,500mm) Min Cuts Length 530 mm When Table 90°And 90° Saw Tilt Min Cuts Length 810 mm When Table 45°And 45° Saw Tilt Min Cuts Length 830 mm When Table 67.5°And 45° Saw Tilt |
For 90° cuts :190 mm x 310 mm For 45° cuts :130 mm x 310 mm (Check T5S-26 cutting capacity chart) |
For 90° cuts :220 mm x 390 mm For 45° cuts :160 mm x 390 mm (Check T5S-30 cutting capacity chart) |
| Range Of Rotation Angle | 22.5° ~ 90° ~ 157.5°(±0°~67.5°) | 45° ~ 90° ~ 135°(±0° - 45°) | 45° ~ 90° ~ 135°(±0° - 45°) |
| Sawing Angle Miter | 45° - 90°(0°~45°) | 45° ~ 90° (0° - 45°) | 45° ~ 90° (0° - 45°) |
| Rotating Speed Of Main Motor | 1,800 R.P.M. | 1,500 R.P.M. | 1,170 R.P.M. |
| Power Of Main Motor | 7.5HP × 2 | 7.5HP(4P) x 1 | 10HP x 1 |
| Servomotor | Saw Tilt(1 Kw)x2,Saw Rotary(750W)x2,Length Positioning(1 Kw)x1 | Saw Tilt (1kw) x1, Saw Rotary(750W)x1 | Saw Tilt (1kw) x1, Saw Rotary(750W)x1 |
| Saw Blade Feeding/Returning Speed | Feeding 0-3 m/min Returning 2-3m/min | Feeding 0-3m/min Returning 2-3m/min | Feeding 0-3m/min Returning 2-3m/min |
| Blade Size | 24" × 1" × 120T | 26" x 1" x 120T | 30" x 2" x 120T |
| Working Air Pressure | 4-6kgs | 4-6 kgs | 4-6 kgs |
| Machine Packing Dimensions(L × W × H) | 6,200 × 1,650 × 1,900 mm | 2,060x1,810x1,760mm | 2,350x2,080x2,060mm |
| Net / Gross weight | 3,900 kgs / 4,300 kgs (6,500 mm 4,400 kgs / 4,800 kgs) | 1,050kgs/1,150kgs | 1,800kgs/2,000kgs |
*We reserve the rights to modify above specification without notice.
