Hydraulic Cylinders
15B---JIS B-8354 Japanese Standard Hydraulic Cylinder -Standard Type
15B---JIS B8354
Features
Cylinders meet JIS B8354 standard.
All cylinders in this series use carbon steel for both front/rear covers.
Adjustable cushions and bleeding holes at both ends. (Both with/without cushion types are available.)
For sensing type, the cylinder is made by honed stainless steel (SUS 304) seamless tube.
For the types without sensor, the cylinder is made by honed carbon steel tube.
Medium carbon steel S45C is used for the piston rod, with hard chromate plated then polished to mirror class. It has very high rigidity and resistance to erosion and corrosion.
Strong structure

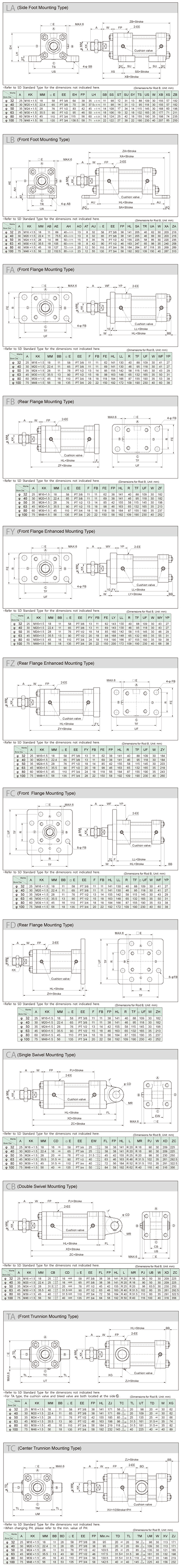

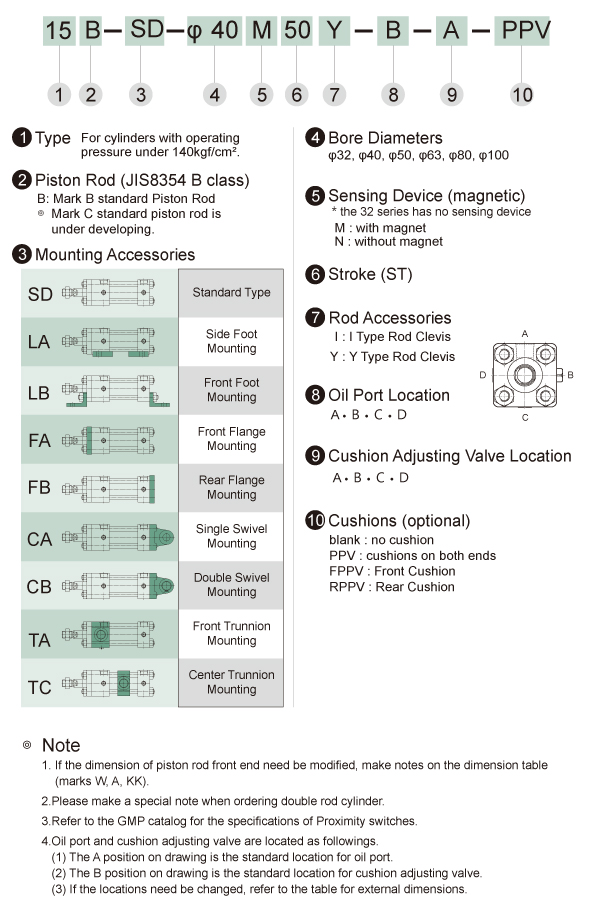

Specification
