PORTAL MILLING MACHINE

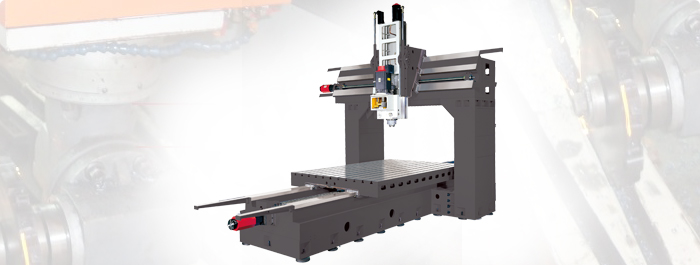

MF Series - Portal Milling Machine
MF Series

  • MF series machines, with typical VW products features of rigid structure and high precision, are designed with box ways with hand scrapping, slant beam with three ways, direct-driven Y-Z transmission, to get the heavy cutting and precision cutting with high acceleration/deceleration control. It's the best choice for medium-to-large parts and mold machining.

  • Z-axis is at the symmetrical position of spindle motor, offering accuracy and precision with micro smooth movement. Using Japan made JIS0 gears for gear head to get the advantages of high rigidity, high precision, and low noise.

  • 1. 3 axes independent ball-screw cooling device.
    2. Solid casting structure, providing good mechanical static and dynamic accuracy.

  • 65 degree slant beam device, with 3-sliding ways, provides the strong supporting to headstock. It offers the best performance for heavy cutting compared others with the same column distance.

  • Direct-driven device on Y-Z axis transmission, with big servo motors, ensures the best accuracy and acceleration.

  • X-axis power transmission with gear reducer device offers servo motor high precision control and enhances the 2-4 times of driving torque. (MF/MN/MH)

  • An independent cooling device for 3-axes ball crews well restrains the axial heat extension. (MB/MF)

  • Separated oil coolers for spindle and 3-axes ball screws, with temperature setting -2 °C lower than room temperature, well control the heat deformation when machining. (MB/MF)


Specification

MODELUNITMF-2000MF-3000MF-4000MF-5000MF-3026MF-4026MF-5026
   TRAVEL
X axismm2,2003,2004,2005,2003,2004,2005,200
Y axismm2,3002,3002,3002,3002,6002,6002,600
Z axismm920/1,020(Opt.)
   TABLE
Table dimensionmm2,200
×
2,050
3,200
×
2,050
4,200
×
2,050
5,200
×
2,050
3,200
×
2,050
4,200
×
2,050
5,200
×
2,050
Max. table loadkg9,00011,00013,00015,00011,00013,00015,000
   SPINDLE
Spindle motor
(Continuous/ 30 minutes rated)
kW18.5/22(22/26 Opt.)
Spindle speed
(2-step gear)
rpm4,500/6,000(Opt.)
Spindle speed
(Beit-driven)
rpm8,000/10,000(Opt.)
Spindle taper
BT50
   FEED
Cutting feed ratemm/min1-7,000
Rapid traversem/minXYZ:12X:10, YZ:12XYZ:12X:10, YZ:12
   OTHERS
Machine net weightKg29,00033,40038,40043,40036,40041,40046,400
Machine gross weightkg32,00037,10043,40048,40040,10046,40051,400


Mold
Machine
Vehicle
