CNC High Speed Machining Center
CNC High Speed Machining Center

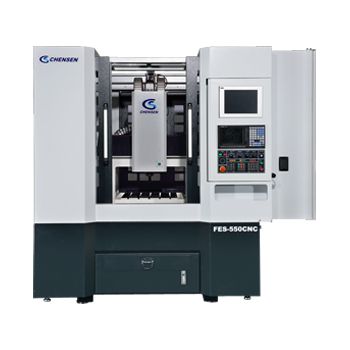

FES-550CNC

Applied Industries::

• Metal, glass, wood,
• Graphite, Electrode, decoration
• Jewel, plaster, Plastics
• PCB, reverse engineering
• Projection drawing, molds

Specification

• High Rigidity : reclined comb-typed 45°
 structure design
• High Speed: digital CNC control system
• High Precision: laser precision measuring
 certification
• Position Precision: ±0.005mm
• Repeat Precision: ±0.003mm
• CT-16 disc-type automatic tool changing:
 ISO 25 tools
• 3kw-30000rpm motorized high speed spindle
• Fix temperature typed spindle cooling system
• Three axes travel : X-550 Y-400 Z-200 mm
• Working table area: 650×540mm
• Maximum loading: 600kgs
• Machine weight: about 3,500kgs
• Equipment occupying area: about2.5×2.5M
