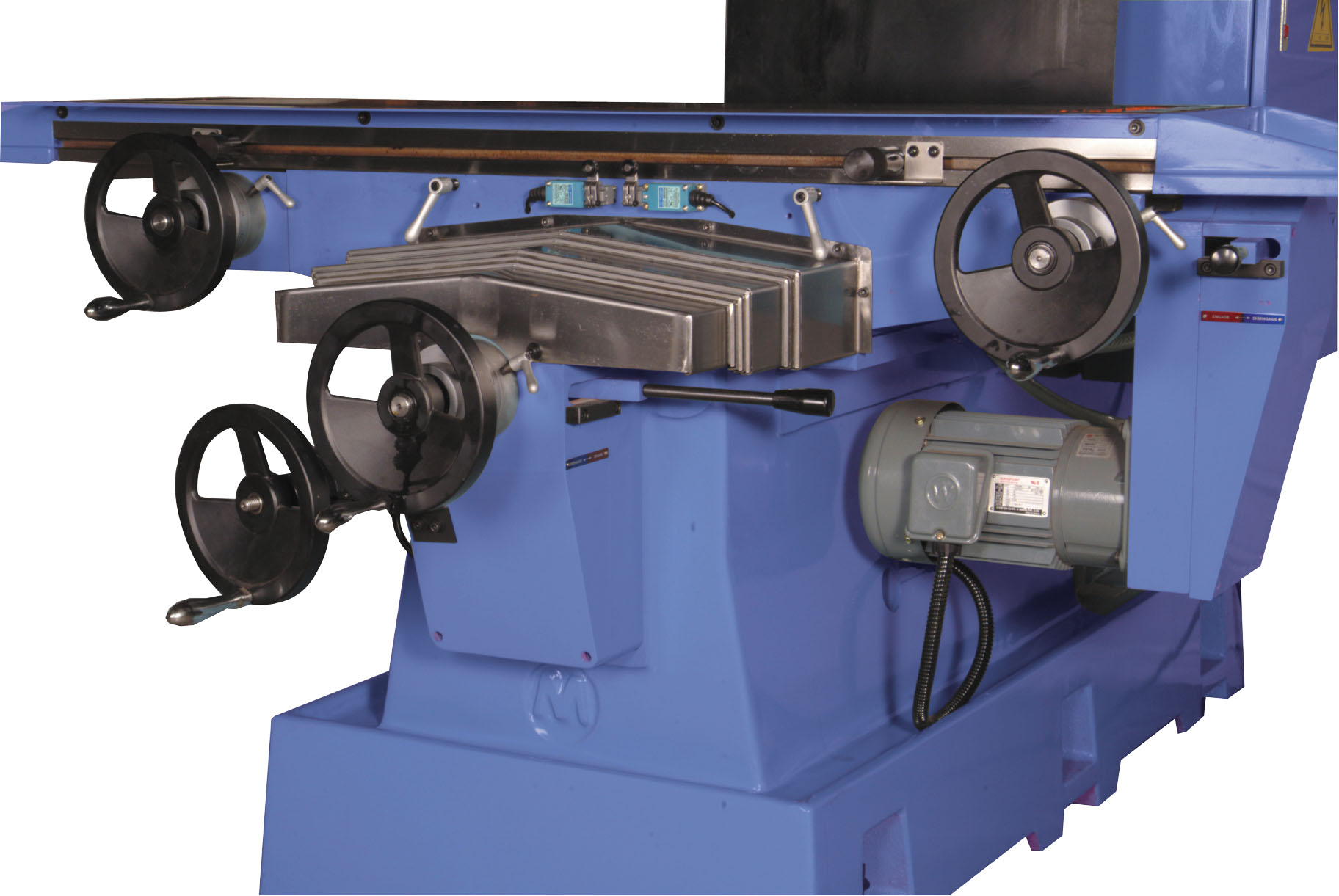

1. TWO HAND WHEEL: The X axis is designed two handle wheel for easy operation.

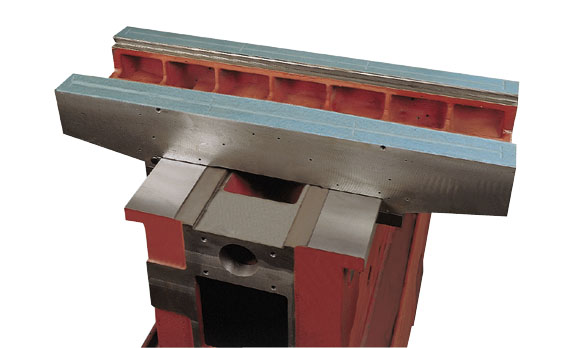

2. COLUMN: The bed and column are designed as box type with rigid structures. All the main components are made of FC-30 high quality casting and annealing heat treatment.
3. SADDLE: The saddles are designed with wide type for accuracy movement in all direction. The sliding surfaces are coated with turcite-B to ensure smooth and accuracy movement in long time.

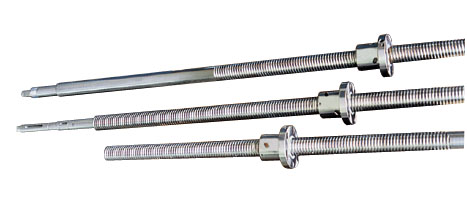

4. BALL SCREW: Ball screw for 3-axis will increase work efficiency.
5. LUBRICATION: The automatic lubrication system with pressure gage, adjustable the timing and flow to provide the excellent lubrication oil onto all the sliding ways.
|■ Standard Accessories||■ Optional Accessories|

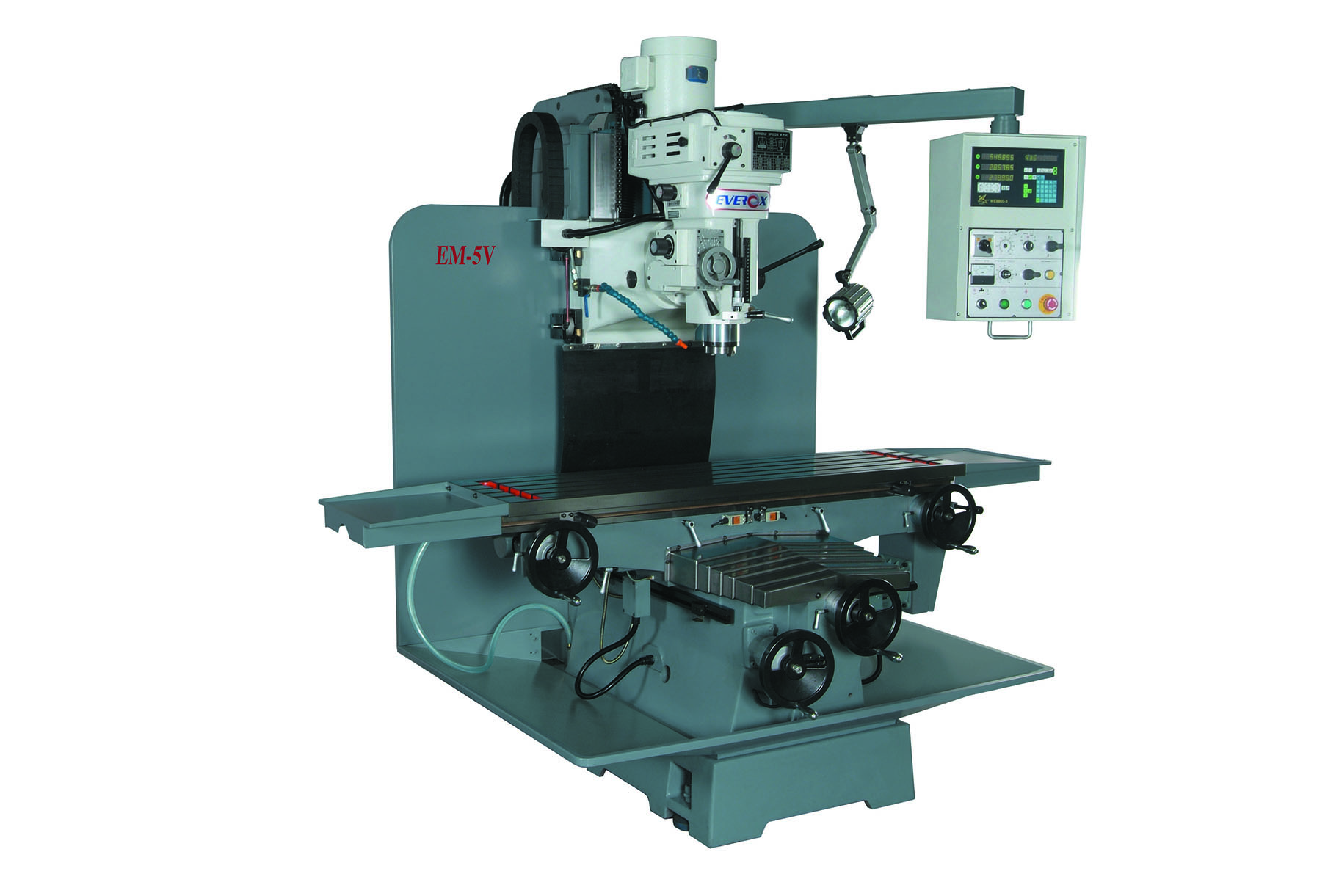

|1||Front steel cover of Y-axis||1||EM-5V / 5VF: Spindle nose NT50#|
|2||Coolant system||2||Chip pan|
|3||Automatic lubricator system||3||Rear splash guard|
|4||Work lamp||4||Safety guard of working table|
|5||Draw bar||5||Air draw bar|
|6||X.Y.Z ball screw||6||Optical readers|
|7||Tools & Tool box||7||5HP invertor control for variable speed head|
|8||Z axis brake cylinder (3V/4V)|
|9||X / Y / Z axis DC servo motor|
|10||200mm increased on Z axis|
|11||CE / CSA / TS approval specification|
