Products

Square Guide Way

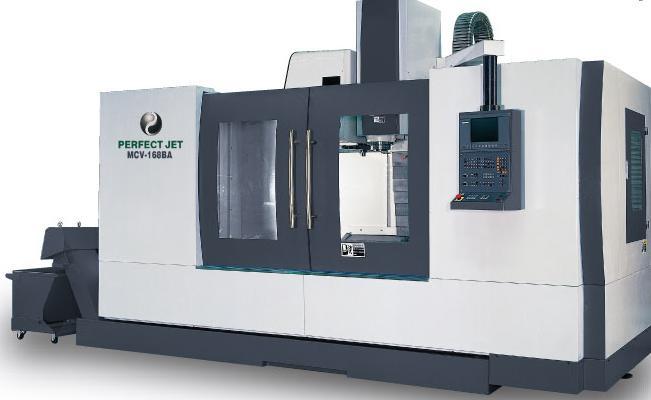

MCV-147E/BA/GA/168BA/GA
MCV-147E/BA/GA/168BA/GA

Specification

Item unit MCV-147E MCV-147BA/GA MCV-168BA/GA
Travel X-axis(mm) 1400 1600
Y-axis(mm) 700 800
Z-axis(mm) 600 700
Nose to table(mm) 165~765 165~865 200~900
Spindle speed Speed range(rpm) 8000(option 10000) 6000(G)
Spindle taper   BT-40/BT50
Spindle drive   Belt Belt/Gear
Spindle motor  KW 11/15 15/20
ATC Magazine capacity 24/30/40
Table Table size(mm) 1450x600 1450x680 1700x810
T-slot(WidthxNo.xpitch) mm 18x5x125 22x5x150
Max. load(Kg) 1200 1400 2100
Feed X/Y/Z Rapid feed(M/min) 15
X/Y/Z Motor  KW 3.5 4.5
Max. tool weight Kg   15(BT50)
Power Sources Power suppply(KVA) 30 35
Pneumatic unit(Kg/cm2) 6
Coolant tank(L) 280
Machine weight N.W/G.W(Kg) 10000/11000 14000/15000 15000/16000
Machine size Packing/Floor space(M) 3.5x2.3x2.55 3.5x3.0x2.7/3.5x3.3x3.1 4.3x3.3x2.7/4.6x3.3x3.3
