Machining Center / Box Way

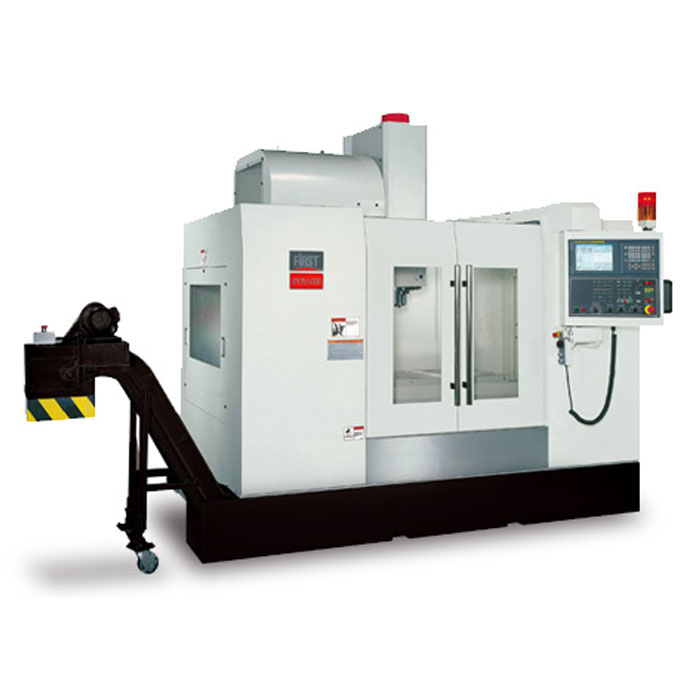

VERTICAL MACHINING CANTER
MCV1000



24 TOOLS MAGAZINE





Specification

SPECIFICATION
MODEL

MCV1000

Travel
X-Axis

1,020 mm (40.2")

Y-Axis

510 mm (20")

Z-Axis

510 mm (20")

Spindle nose to table

120 ~ 630 mm (4.7 ~ 24.8")

Table
Table size

1150 X 500 mm (45.3X19.7")

Floor to table

800 mm(31.5")

Max. table loading capacity

1,000 kgs(2200Lbs)

T-slot (no x Width x Pitch)

5 X 18 mm X 100 mm (5 X 0.7" X 3.9")

Spindle center to column

510 mm (20")

Feed system
Rapid traverse speed

X/Y: 20 M/min ( 787.4"/min), Z:18 M/min (708.7"/min)

Feed motor(FANUC)

X/Y: 2.5kW (20 Nm) , Z: 3.0kW (36 Nm)
servo motor: X/Y: Beta 22i / Z: Beta 40iB

Ball screw diameter & pitch

X/Y/Z: 40 mm / 10mm(1.6"/0.4")
servo motor: X/Y: Beta 22i / Z: Beta 40iB

Cutting feedrate

1~10,000 mm/min(0.04 ~ 393.7"/min)

Type of transmission

Direct Drive

Spindle
Type of tool shank

BT 40 / CAT 40 / DIN 69871A

Max. spindle speed

8,000 rpm / 10,000 (Op)

Spindle motor

11 /15 kW

Type of transmission

Belt

ATC
Tool storage capacity (Arm-Less)

24 tools (Op)

ATC type

Armless type

Max. tool diameter

95 mm(3.7")

Without adjacent tool

156 mm(6.1")

Max. tool length

300 mm(11.8")

Max. tool weight

7 kgs(15Lbs)

Tool changing time (Tool to Tool)

3.2 sec

Tool changing time (Chip to Chip)

 5.5 sec

Method of tool selection

random selection

bi-directional magazine rotation

Tool display

Yes

Special tool management

Yes

Coolant system
Coolant tank size

450 L

Coolant capacity

95 L / min

Chip Flush capacity

105 L / min

Machine size
Machine height

2,575 mm (101.3")

Floor space

4,085mm(160.8')(W) X 2293 mm(90.2")(D)

weight

5,000 kgs (11000Lbs)

Power source
Electrical power supply

20 KVA / 3PH,220V 50/60HZ

Compressed air supply

6.0 kgf/c㎡ (85psi) (0.6MPa)

Controller

FANUC / MITSUBISHI / SIEMENS

Edition / A01

* Specifications may different according to option accessories and are subject to change without notice.

Standard accessories
 Arm type ATC (24 tools)
 8,000rpm spindle (Belt type)
 Spindle coolant system
 Automatic lubrication system
 Portable electronic handwheel (FANUC)
 Working light
 Alarm light
 Spiral type chip conveyor
 Coolant gun
Optional accessories

 10,000 rpm spindle (Belt type)
 Spindle chiller
 Preparation for coolant through spindle system
 Coolant through spindle system
 Spindle air blow
 Flat type chip conveyor
 4th or 4+5th axis rotary table
 Heidenhain 3-Axis linear scale
 Working piece measurement system
 Tool length measurement system
 Heat exchanger on electrical cabinet
 Power transformer
 CE (Safety door interlock)
 Oil skimmer
 Riser block 80mm
 Riser block 180mm
 Air gun
