CNC-EB EDM

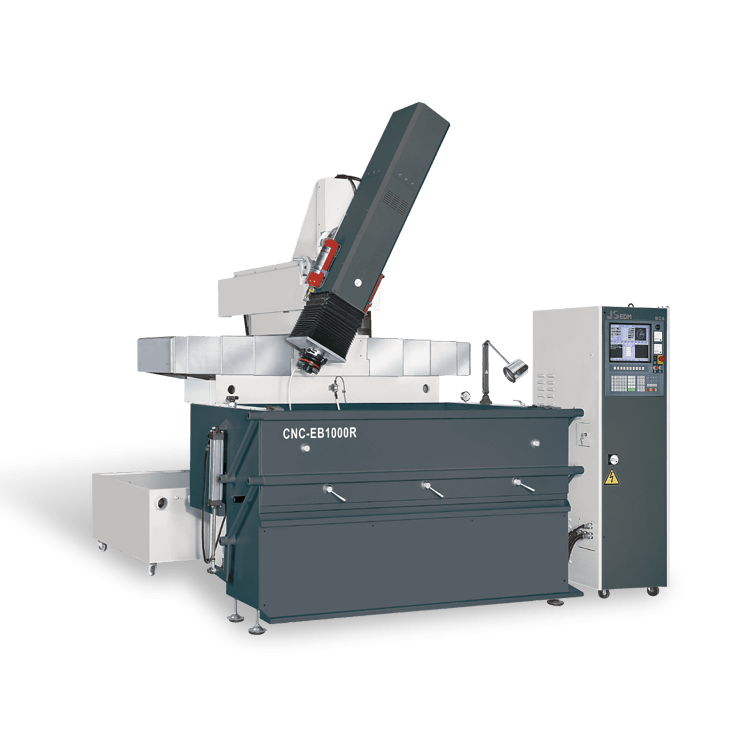

CNC-EB1000R
CNC-EB1000R

User friendly industrial CNC controller
Industrial computer (IPC), with industrial CF card and support USB disk data copy backup function, so that the data is more convenient and reliable.
Chinese & English display.
Metric & British system display & program setting.
1,000 stations processing programs. Simplify the program editing; with one block command, you can finish line multi-cavity machining and matrix multi-cavity machining.
10 files, each with 256 sets of processing parameters table, which can store processing conditions.
Automatic Edge finding, Home finding, Center or Inner hole finding, and Apex finding.
The Conversation type program has Loop & Call, Note & Pause, Mark / Copy / Delete Block and Skip line functions. It is easier to learn, write, & edit programs.
Has Side loran function (X, Y axis), Angle Vector machining function, and ARC clockwise & ARC counter Clockwise function.
Single or 3 axis lateral machining, Round orbiting, Square orbiting, & Vector machining.
Optional accessories A.T.C., C Axis (Including the helical-gear machining, C-X / C-Y axis lateral rock machining, and other applied machining commands).

Specification

  • Capacity of Work Tank

    1960x1100x550 mm

  • Work Table Size

    1100x700 mm

  • Longitudinal Travel (X-Axis)

    1000 mm

  • Cross Travel (Y-Axis)

    600 mm

  • Z Axis Travel (Z-Axis)

    500 mm

  • Distance Between Platen to Table

    500~1000 mm

  • Max. Electrode Weight

    100 / 3 kgs (Slope Machining Process)

  • Max. Work Piece Weight

    4000 kgs

  • Min. D. R. O. Resolution

    0.001 mm

  • Fluid Tank Capacity

    1560 L

  • Machine Outside Dimensions (WxDxH)

    3600x3200x3200 mm

  • Machine Weight

    5000 kgs

  • Max. Machining Current

    90 / 120 A (Optional)

  • Max. Power Input

    10 / 13 KVA

  • Max. Machining Rate

    600 / 800 mm3/min

  • Best surface / Ra

    Ra 0.2 μm

  • Min. Electrode Wear Ratio

    0.12 %

  • Generator Weight

    350 kgs
