Warm-hot Forging Presses
Warm hot forging press-WF Series

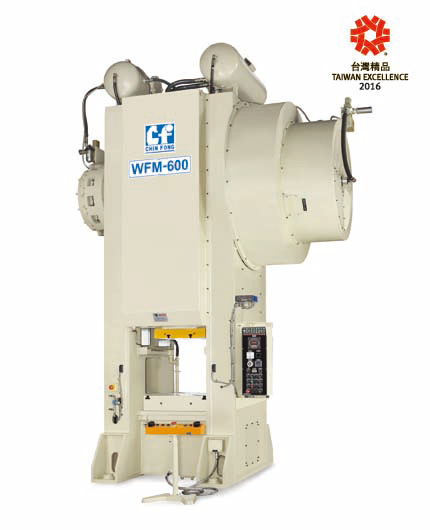

WFM-600
WF series is high-quality, high-efficiency warm hot forging press, which could be widely applied in automotive parts, hand tools, home appliance, medical equipment, motor parts and national defense industry. Featuring strength both from cold and hot forging production, this series not only reduce production cost by decreasing process stages, but also increase additional value of customer's product.
Specification
| Product | WFM-400 | WFM-600 | WFM-800 | WFM-1000 | WF2-1600 | WF2-2000 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | G | F | G | G | ||||||||
| Capacity-ton | 400 | 600 | 800 | 1000 | 1600 | 2000 | ||||||
| Stroke Length-mm | 175 | 200 | 250 | 250 | 330 | 330 | ||||||
| Strokes Per Minute-S.P.M. | 100 | 95 | 85 | 60 | 85 | 60 | 70 | 50 | 48 | |||
| Die Height (S.D.A.U.)-mm | 505 | 750 | 850 | 950 | 800 | 900 | ||||||
| Bolster Area (L.R. x F.B.)-mm | 770x840 | 880x880 | 900x800 | 1100x1050 | 1250x1150 | 1450x1400 | ||||||
| Slide Area (L.R. x F.B.)-mm | 595x555 | 695x635 | 800x750 | 900x880 | 950x900 | 1300x1200 | ||||||
| Product | WF2-3200 | WF2-4000 | ||
|---|---|---|---|---|
| Capacity-ton | 3200 | 4000 | ||
| Stroke Length-mm | 360 | 420 | ||
| Strokes Per Minute-S.P.M. | 42 | 36 | ||
| Die Height (S.D.A.U.)-mm | 1200 | 1600 | ||
| Bolster Area (L.R. x F.B.)-mm | 1750x1600 | 2200x1800 | ||
| Slide Area (L.R. x F.B.)-mm | 1550x1450 | 1900x1800 | ||
- Ultra rigid frame
- High rigidity of forged alloy steel eccentric shaft
- Slide eight point gib ensures forging precision
- WFM-G models are all equipped with transmission gears, which are suitable for forging aluminum alloy, work piece.
- Slide CAE structural analysis ensures high rigidity.
