AGMACHINE TECHNO CO., LTD.
886-4-25612868
886-4-25613010
No. 7, Alley 34, Zhuang-Qian Road, Shengang Hsiang, Taichung Hsien, Taiwan 429
www.agma.com.tw

Products

VERTICAL MACHINING CENTER
LINEAR GUIDE WAYS

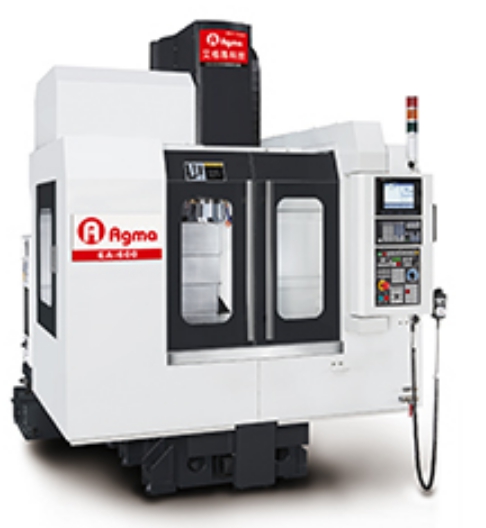

A-600(Non-CE)/EA-600 (CE)

A-600(Non-CE)/EA-600 (CE)

*AGMA once again presents high speed A-series machining centers to a foresighted customer like you with industry-leading
scraping technology of hardened box way and the technological capacity of manufacturing process.

This series of machines are based on high-rigidity Meehanite cast iron and adopt 10,000/12,000/15,000RPM direct driven
spindle. Three axes adopt high precision linear guideways and ball screws. Other optional accessories which fully comply
with a variety of cutting demand are also available.

Synchronously adopt the European & Japanese design
1. Wide-span rigid column
2. Taiwan-made PMI extra-large 30mm precise roller- rail linear guide way (option)
3. Adopt high-end direct motors and high rigidity couplings in three axes
4. High quality full-length enclosed splash guard, elegant appearance, wellexecuted, and in good taste

Extra-large Z-axis motor
1. 3.0KW (no counter balance design) EA600



High reliable and high accuracy ballscrew design
1. Ø30mm high class double nut provides strong rigidity, high torque, better accuracy, long-life, and effectively heat extension control.
Extra wide door design
1. The width of door reaches 725mm for conveniently loading and unloading the fixture and workpiece.

Extra wide door design
The width of door reaches 725mm for conveniently loading and unloading the fixture and workpiece. Stable air supply equipment
1. The gas storage barrel assists to acquire steady air source to increase equipment utility rate.


EA600 Unique Column Design
Single central screw type chip auger collocates left and right sides flush toremove the chip from front to back.

EA600 Chip Auger motor shrinks within to reduce the distance of the front sheet metal for ergonomics improvment on the ease of workpieces loading and unloading.

Specification

Specification:http://www.agma.com.tw/web_e/03-2dd_product.html
