TC-155L


  • Use rotary wheel type special chuck , it can be adjusted the size according to different works.


  • With inverter, it can be adjusted the speed step less. To the universal ball of different size, seal to the best effect.


  • Two steps speed control . hasten the working efficiency


  • Hydraulic capacity can adjust the pressure big & small. And with micro action , manual, auto function


  • This kind of processing way can fully eliminate the response force, reach to the closed function .it also can not make the work piece in flation open or lose figure.

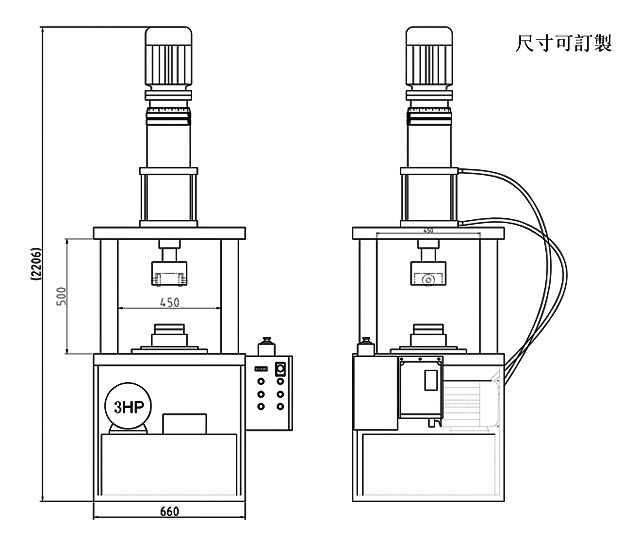

Specification

Specifications:

Model

TC-155L

Motor

3 HP

Stroke

150mm

Riveting capacity (mild steel)

Hollow rivet 22~55

Working cycle time (sec)

0.5~10

Ordinary pressure (kg/cm2)

20~60

Max. output (kgf)

500~2000

Distance between punch and table (mm)

250

Weigh (kg)

1050

50/60HZ R.P.M.

無段變速

------- Special machines for riveted products are available for ordering -------
