Oil Pumps、Motors

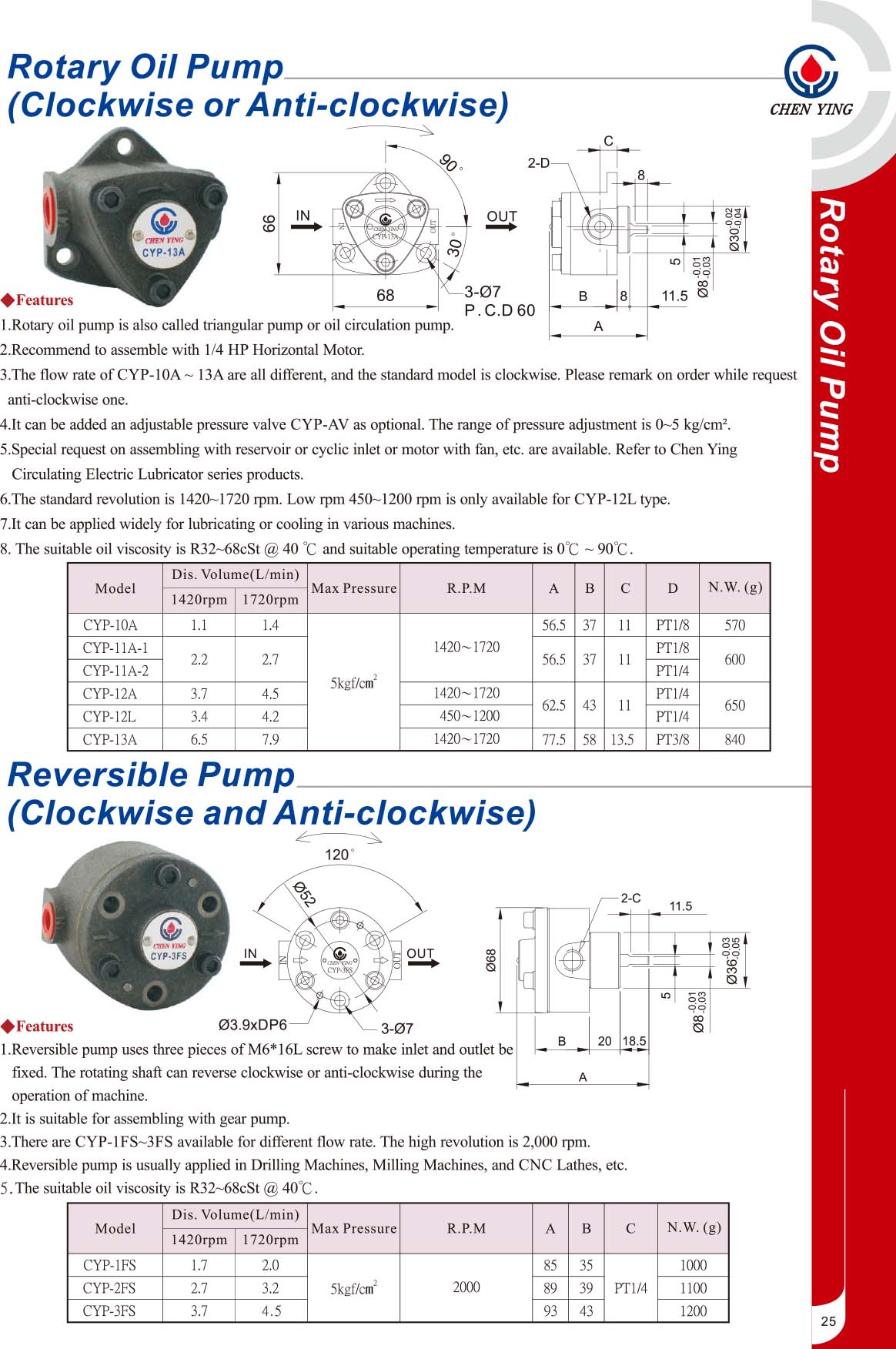

Pumps & Others-Rotary Oil Pump(Clockwise or Anti-clockwise)

◆Features:
1.R otary oil pump is also called triangular pump or oil circulation pump.

2.Recommend to assemble with 1/4 HP Horizontal Motor.

3.The flow rate of CYP-10A ~ 13A are all different, and the standard model is clockwise. Please remark on order while request anti-clockwise one.

4.It can be added an adjustable pressure valve CYP-AV as optional. The range of pressurea djustment is 0~5 kg/cm².

5.Special request on assembling with reservoir or cyclic inlet or motor with fan, etc. are available. Refer to Chen Ying Circulating Electric Lubricator series products.

6.The standard revolution is 1420~1720 rpm. Low rpm 450~1200 rpm is only available for CYP-12L type.

7.It can be applied widely for lubricating or cooling in various machines.

8.The suitable oil viscosity is R32~68cSt @ 40 ℃ and suitable operating temperature is 0℃ ~ 90℃.
