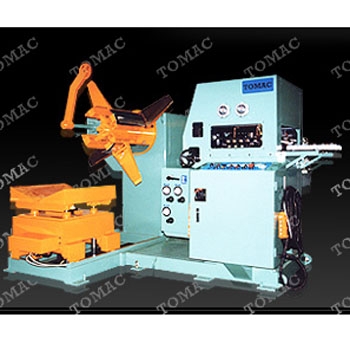

Specification
|
|
Item
|
TLF1-300
|
TLF1-400
|
TLF1-500
|
TLF1-600
|
|
Width of Material (mm)
|
75 ~ 300
|
75 ~ 400
|
75 ~ 500
|
75 ~ 600
|
|
Thickness of Material (mm)
|
0.4 ~ 2.3
|
|
Max. Coil Weight (kg)
|
2000
|
3000
|
|
Max. Coil I.D. (mm)
|
508
|
|
Max. Coil O.D. (mm)
|
1200
|
|
Max. Speed (m/min)
|
16
|
|
Feed Pitch Accuracy (mm)
|
±0.15
|
|
Feed Roll
|
upper 1 / lower 1
|
|
Work Roll
|
upper 4 / lower 3
|
|
Power Supply
|
220VAC 60HZ
|
|
Air Supply
|
5 kg/cm
|
|
Uncoiler Expansion
|
Hydraulic
|
|
Main Motor (kW)
|
AC 2.0
|
AC 3.5
|
|
Uncoil Motor (kW)
|
AC 0.75
|
AC 1.5
|
|
Feed Level (mm)
|
Customer request ±100
|
|
|
Straightening Performance
|
|
Model / Width / Thickness
|
0.3
|
0.6
|
1.0
|
1.2
|
1.4
|
1.6
|
2.0
|
2.3
|
|
TLF1- 300
|
300
|
220
|
|
TLF1- 400
|
400
|
280
|
210
|
|
TLF1- 500
|
500
|
390
|
250
|
190
|
|
TLF1- 600
|
600
|
400
|
300
|
240
|
180
|
※The above figures are for the material having tensile strength 400 N/mm2. Yield strength 275 N/mm2.
|
|
Standard Accessories
|
|
1. Electric eye loop control system
2. Feed and straightener rolls hard chrome plated
3. Outgoing catenary to assist and support the material
4. Power arm hold down device
5. Feeding line easily adjusted by advance worm gear screw jacks device
6. Uncoiler with inverter control
7. Reference indicator adjuster
8. Uncoiler with air disc brake
9. Coil side guide
10. Straightener open device
|
|
