Capacity (mm)
Single Miter Cutting

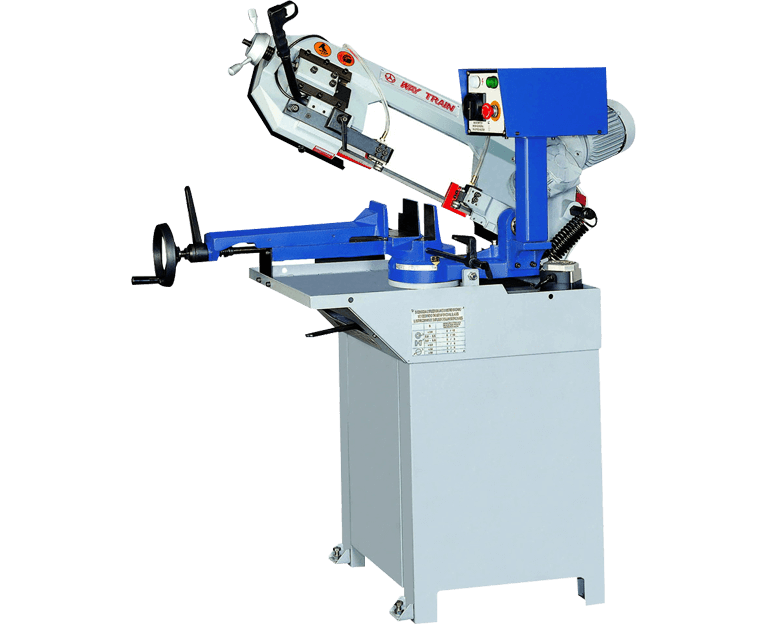

WE-210SH
H170 W210
Angle cutting 0ﾟ~60ﾟ
Manual vise clamping
Two Blade speeds selection (S/SH)
Inverter controls variable blade speed (SHV)
Specification
Specifications
| Capacity 90° (H x W) | ● 170 mm ▅ 170 mm ▅▅ 100 x 210 mm |
Capacity 45° (H x W) | ● 120 mm ▅ 110 mm ▅▅ 60 x 130 mm |
| Capacity 60° (H x W) | ● 70 mm ▅ 60 mm ▅▅ 65 x 70 mm |
Blade Size | 20 x 0.9 x 2110 mm |
| Blade Speed (2 Speeds) | 50HZ 4P 80 m/min, 8P 40 m/min | Blade Speed (Inverter) | 20 ~ 85 mpm |
| Blade Motor | 1 HP (0.75 kw) | Coolant Motor | 32 W |
| Container LoaDS / DSV | 40 units / 20', 84 units / 40' | Packing Size | 1150 x 570 x 890 mm |
| N.W./G.W. | 156 kg / 170 kg |
