Sliding Double-column EDM

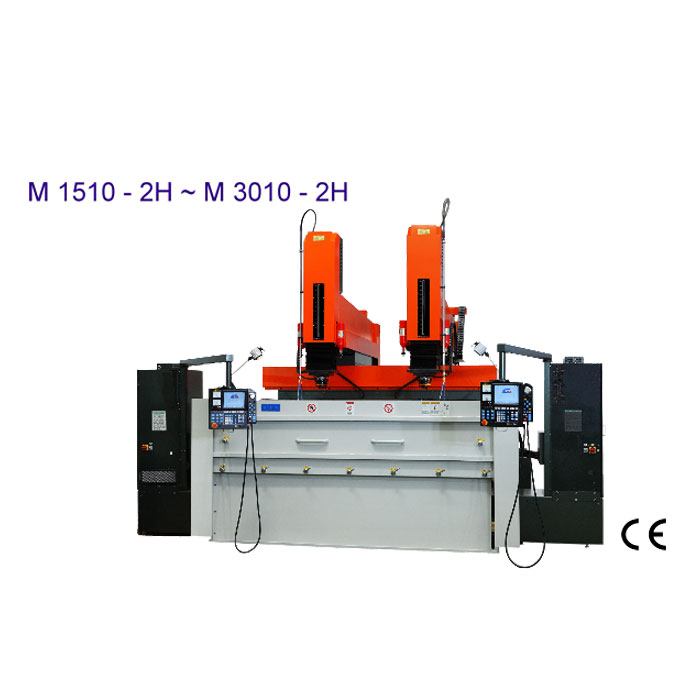

CNC Series : Sliding Double-column EDM (Ram type)
M2210 - 2H ~ M3010 - 2H

The X. Y& Z axes utilize AC servo motors.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special rib shape machining function.

Specification

Specification
M 2210 - 2H
M 3010 - 2H
X, Y-Travel
1 Head: 1600 x1000 mm
1 Head: 2500 x1000 mm
2 Head: 800 x 1000 mm
2 Head: 1275 x 1000 mm
Z-Travel
600 mm
600 mm
Table Dimension
2250 x 1100 mm
3100 x 1100 mm
Work Tank Dimension
2820 x 1620 x 640 mm
3830 x 1700 x 800 mm
Max. Table-Quill Distance
540~1140 mm
750 ~1350 mm
Max. Electrode Weight
500 kgs
500 kgs
Max. Table Loading
13000 kgs
18000 kgs
Dielectric Tank Capacity
4600 Litre
6000 Litre
Filters
12 pcs
8 pcs
Machine Weight
15100 kgs
21100 kgs
Machine Height
3680 mm
3850 mm
Ground Area M2210-2H M3010-2H
Nominal Current
90A / 5A , 120A / 5A , 150A / 5A , 180A / 5A , 300A / 58A
Input Voltage
220 / 380 / 415 / 440V
Connected Rating
20KVA / 26 KVA / 34 KVA
Max. Stock Removal Rate
600 / 800 / 1000 / 1200 / 1600 / 2000 mm³/min
Best Surface Roughness
Ra ≦ 0.1μm
Best Electrode Wear Rate
< 0.2% ( specific equip.< 0.1%)
Standard accessories
Additional Equipment
Precision Electrode Clamps ATC (Auto Tool Change)
Piezoelectric Light C-Axis
Work Fastening Tool Kit "EROWA" Chuck-Swiss
Magnetic Induction Oil Nozzle Base 3R System Chuck-Swedish
Operation Manuals Di-Electric Cooler
M.F.D (Fine Mirror Finish) Electric Oil
X, Y, Z Axis Linear Scales (1μm) Permanent Magnetic Chuck
  Automatic Fire Extinguisher
