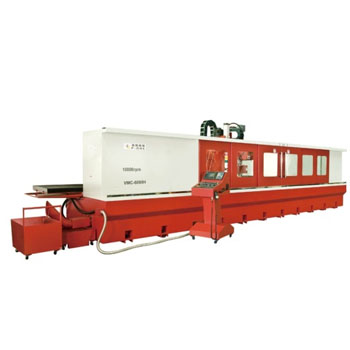

Moving column machining center - Linear guideway
Moving column machining center - Linear guideway
VMC-6000A
Specification
Linear guideways / Moving-Column Mechanism
|
MODEL |
VMC-4000A |
|
X-axis Travel |
4000~7000mm |
|
Y-axis Travel |
450mm |
|
Z-axis Travel |
350mm |
|
Spindle nose to table |
180~530mm |
|
SPINDLE |
|
|
Spindle speed |
12000rpm |
|
Spindle taper |
BT- 30 |
|
FEEDRATE |
|
|
Rapid traverse (X) |
30m/min |
|
Rapid traverse (Y, Z) |
12m/min |
|
Feed rate (X,Y,Z) |
1- 6000mm/min |
|
AUTOMATIC TOOL CHANGER |
|
|
Magazine capacity |
12 |
|
Tool change type |
Front-mounted type |
|
Max. tool diameter |
ø70mm |
|
Max. tool weight |
5kg |
|
MOTOR |
|
|
Spindle motor(cont/30min) |
AC 3.7kw |
|
Axes motors |
3.0 kw |
|
Packing dimension (LxWxH) |
12500x3750x3500mm |
| ITEM |
STANDARD ACCESSORIES |
| 1 |
Submerged coolant System |
| 2 |
Semi-splash guard |
| 3 |
Press-relief lubrication system |
| 4 |
Spindle air blast |
| 5 | 12-Tool Front-mounted type ATC |
| 6 |
Tools and tool box |
| 7 |
Leveling bolts and pads |
| 8 | M30 Auto power off |
| 9 | Heat exchanger for electric cabinet |
| 10 | Alarm light |
