Axis Servo-Motor Traverse Robot AT-SB Series
Axis Servo-Motor Traverse Robot AT-SB Series
AT-SB

Detail Specifications

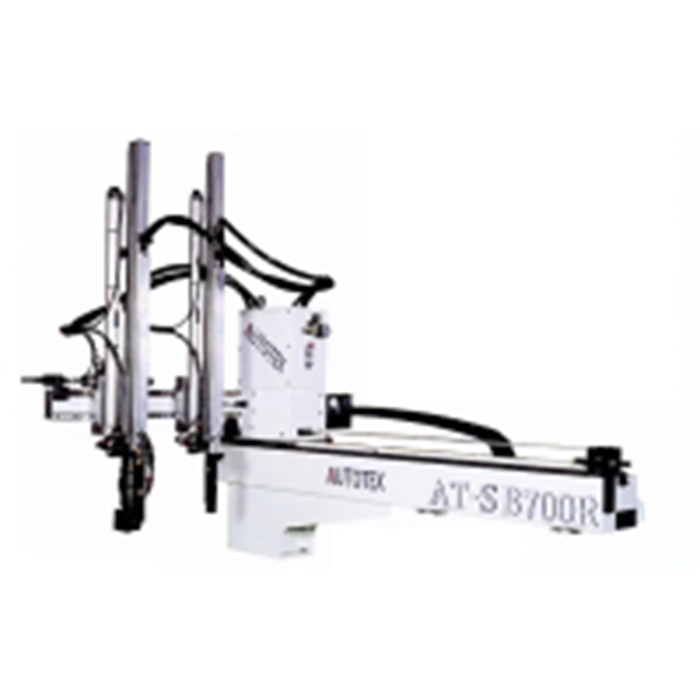

Axis Servo-Motor Traverse Robot / AT-SB Series

--Horizontal Servo Motor
It adopts Japanese PANASONIC advanced servo motor with high speed, fast response and precise positioning (±0.1mm), which can greatly shorten the cycle picking time.

--Linear slide
Using Japan's highest quality THK slide, high speed, wear resistance, stability and no vibration.

--Security Mechanism
The cylinder anti-drop device, suction clamp confirmation induction, low air pressure warning...etc are designed to completely avoid clamping mold and ensure that the finished product is taken out.

--EUROMAP 12 & SPI
Compliant with CE safety regulations, EUROMAP 12 quick couplings can be installed.

--Easy to pick
・Using a palm-sized LCD display screen with long-term memory, which is not affected by shutdown or power failure.
・Chinese and English language switching, different languages can be added according to customer needs, 20 groups of commonly used modes and 30 groups of open programmable modules, which are convenient for changing molds.
・Multiple sets of output ports, convenient to install other equipment.

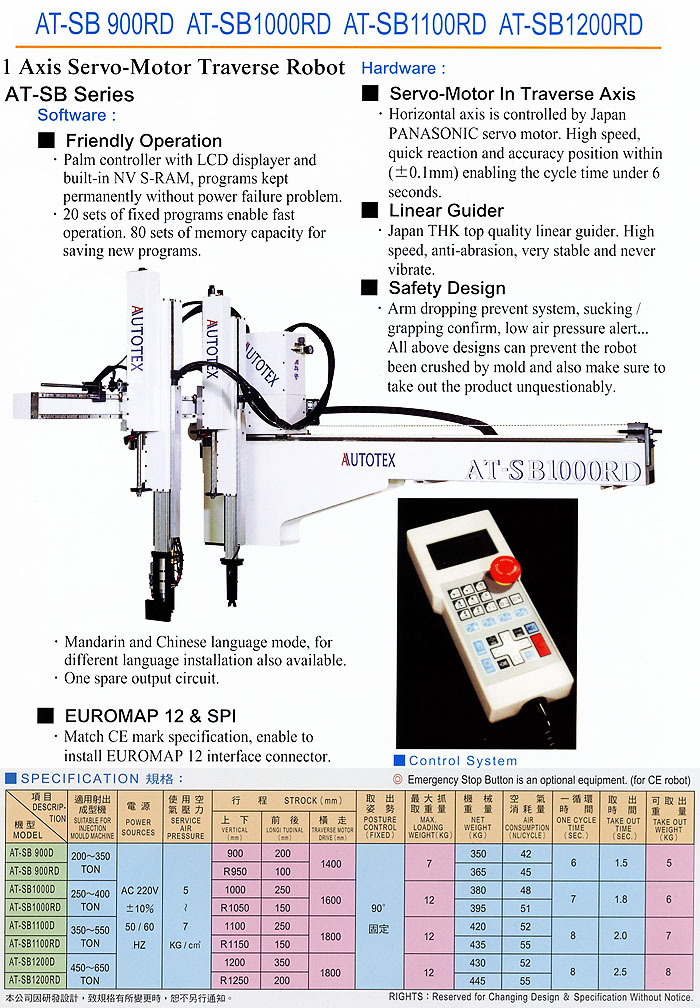

Specification
