Products

Slitting Machine
Standard Slitting Machine

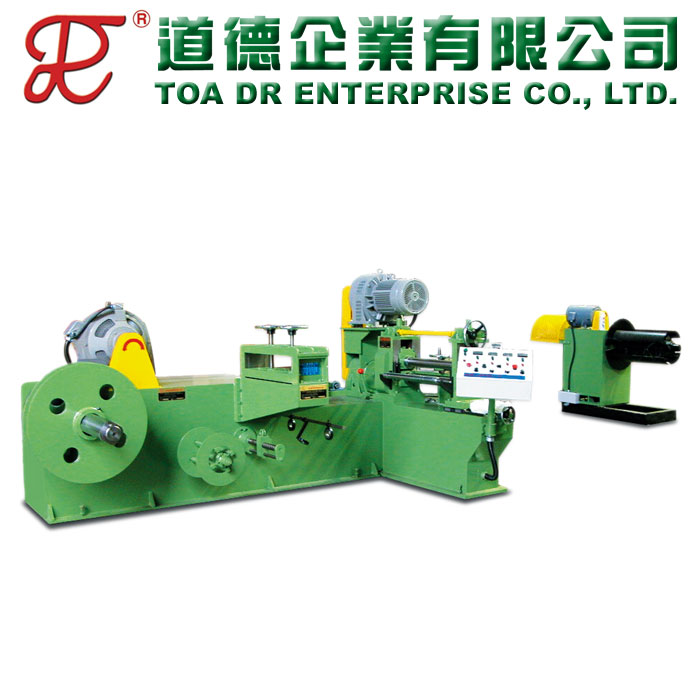

TDS-400/500/600

This slitting machine is mainly used to cut wide-sized materials into many narrow width strips.
Made of Cr-Mo steel, the knife shaft is precisely manufactured after several heat treatments.
The knife shaft is manufactured by our own plant to ensure high precision.
Roller devices are installed in front and back end, thus reducing the surface damage of materials.
A movable control panel is available for easy operation.

Specification

Type TDS-400 TDS-500 TDS-600
terial quality Stainless Steel、Bronze、Silicon Steel and various coiled sheets
width 415 mm 515 mm 615 mm
depth 0.1 mm ~ 0.8 mm(basic capability)
weight 2,000 kgs(basic capability)
spped 65 M/min and up
types pull-cut and drive-cut dual types
