Turn Mill center ／ Y axis
Turn Mill center ／ Twin spindle, Single Y axis

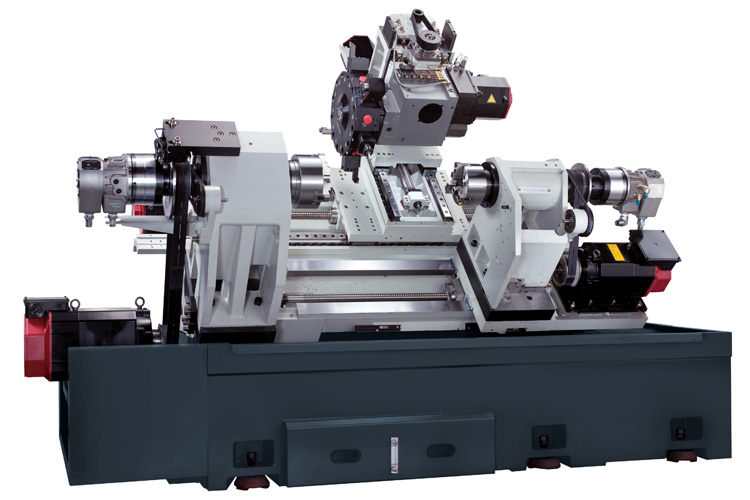

FCL - 15 TSY
FEATURES
45 degrees slant bed.
Roller linear guideway on X 、Z 、Y axis.
Specification
SPECIFICATION
| Swing over bed | Ø 740 mm ( 29.13” ) |
|---|---|
| Max turning diameter | Ø 300 mm ( 11.81” ) |
| Working length | 260 mm ( 10.23” ) |
| Spindle nose | Main : A2 - 5 Sub : A2 - 5 |
| Bar capacity | Ø 45 mm ( 1.7 ) Ø 45 mm ( 1.7 ) |
| Hydraulic chuck | Ø 169 mm ( 6” ) Ø 169 mm ( 6” ) |
| X axis travel | 175 mm ( 6.88” ) |
| Z axis travel | 224 mm ( 8.81” ) |
| Y axis travel | ± 40 mm ( 1.57” ) |
| B axis travel | 250mm( 9.84” ) |
STANDARD ACCESSORIES
Feature
- Major machine parts, such as base, saddle, headstock, slide and sub spindle are made of Meehanite cast iron. They are tempered to relieve stress thereby ensuring lifetime accuracy.
- High performance servo motors are directly coupled to the pre-tensioned ball screws.
- Linear guide way on X and Z axes has fewer friction and faster feed rate.
- ox guide way on B axis has higher rigidity.
- 45 degrees slant bed constriction features efficient chip removal and firm support.
Controller ： FANUC、SIEMENS、FAGOR
FANUC Controller (Std.)
SIEMENS Controller (Opt.)
FAGOR controller (Opt.)
SKF Precision Spindle and P4 precision bearings ：
The cartridge type is conveniently removed allowing for convenient servicing. The spindle runs on class P4 precision bearings providing high axial thrust capability and superior radial stability. This ensures high precision during heaving duty turning.
Fast Turret Indexing ：
FCL - TS / TT series turret
The 12 position turret features bi-directional random tool selection. Fast indexing time is 0.6 seconds.
FCL - S series ： hydraulic turret
Twin spindle series enables the entire workpiece to be machined at one time.
