Turn Mill center ／ Y axis
Turn Mill center ／ Single spindle, Single Y axis

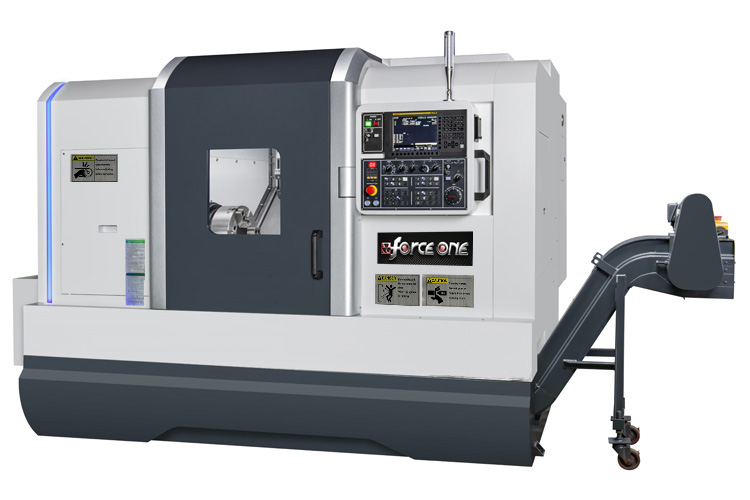

FCL - 20 Y
Single spindle / single turret
FEATURES

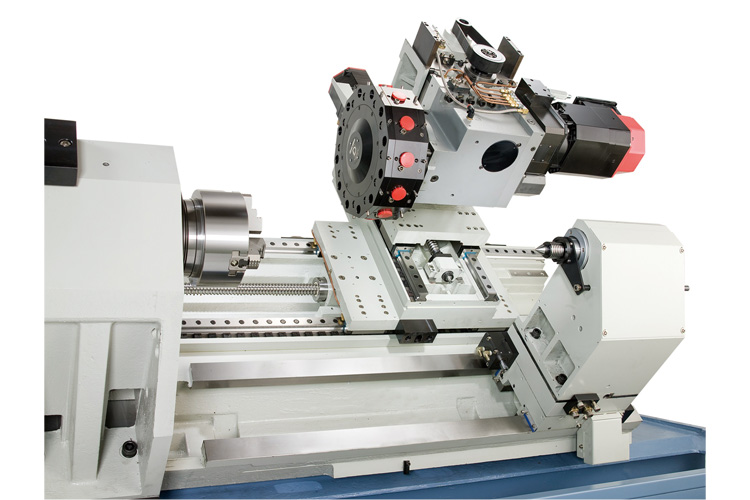

45 degrees slant bed.
Roller linear guideway on X 、Z 、Y axis.
Specification
SPECIFICATION
| Swing over bed | Ø 740 mm ( 29.13” ) |
|---|---|
| Max turning diameter | Ø 300 mm ( 11.81” ) |
| Working length | 365mm ( 14.37” ) |
| Spindle nose | A2 - 6 |
| Bar capacity | Ø 52 mm ( 2.04” ) |
| Hydraulic chuck | Ø 210 mm ( 8” ) |
| X axis travel | 175 mm ( 6.88” ) |
| Z axis travel | 410 mm ( 16.14” ) |
| Y axis travel | ± 40 mm ( 1.57” ) |
