規格數據

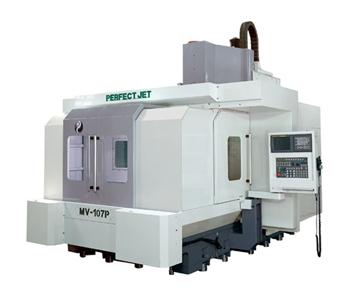

| Item | MV-64P/86P/107P | |
| Travel | X-axis mm | 610/800/1000 |
| Y-axis mm | 410/610/700 | |
| Z-axis mm | 570/600/700 | |
| Nose to table mm | 200~770/150~720/165~865 | |
| Spindle | Speed range rpm | 10,000 |
| Spindle taper | BT-40 | |
| Spindle drive | Direct-coupled | |
| Spindle motor Kw | 5.5/7.5-7.5/11-11/15 | |
| ATC | Magazine capacity | 24/24/24(0pt.30/40) |
| ATC typer | Arm type | |
| Tool change time Sec | - | 2/2/2.5(T to T) |
| Table | Table size mm | 650x410x2/900x610x2/1200x700x2 |
| T-slot(WidthxNo.xpitch) | 18x4x100/18x4x125/18x4x150 | |
| Max. load(Kg) | 250xs/400x2/450x2 | |
| Feed | X/Y/Z Rapid feed | 36/36/30-36/36/30-30/30/24 M/min |
| X/Y/Z Motor Kw | 3/3/4-4/4/7-7/7/14 | |
| Guide typer | M35/M45-M45-M55 Linear | |
| Tool | Tool Shank | BT.40 |
| Max. tool length mm | 300 | |
| Max. tool diameter mm | 80/127 | |
| Max. tool weight Kg | 7 | |
| Power suppply KVA | 25/35/45 | |
| Power Sources | Pneumatic unit Kg/cm | 5.5~6.5 |
| Coolant tank L | 270/400/450(225x2) | |
| Machine weight | Net weight Kg | 7000/11000/15000 |
| Machine size | LxWxH mm | 2385x3193x2840/2700x4300x3200/2880x4480x3285 |
| ● Heavy load type M55 liner ways on all axes assure maximum rigidity. | ||
| ● Also ideal for aluminum and compound material machining. | ||
| ● Rapid traverse 30 M/min. | ||
| ● Cutting federate 20 M/min. | ||
| ● Directly coupled spindle. | ||
| ● Fully enclosed splash guard. | ||
| ● Spindle oil cooler. | ||
| ● 4th / 5th rotary table is optional | ||
